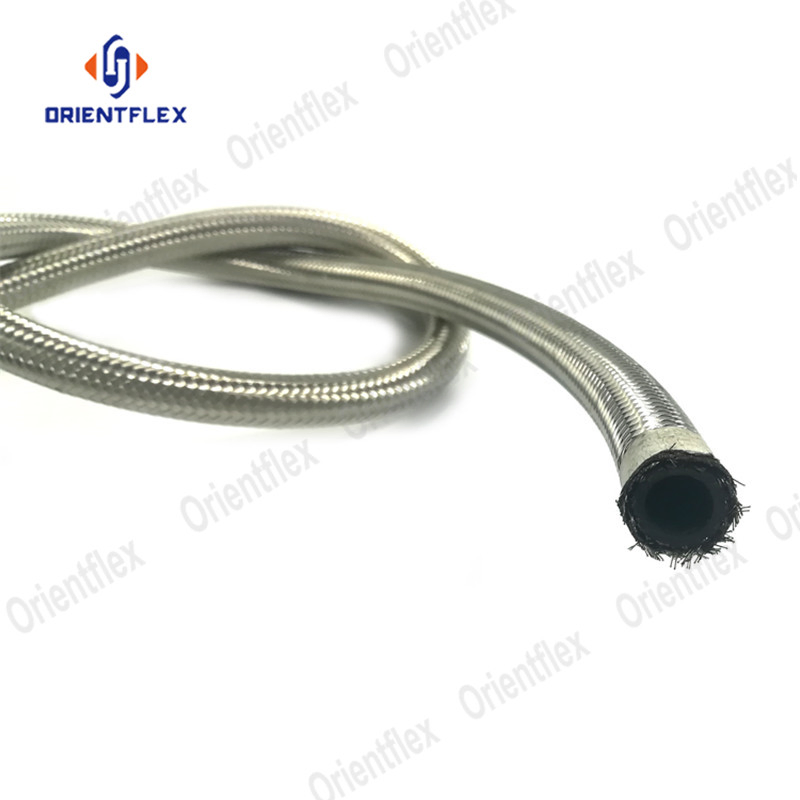

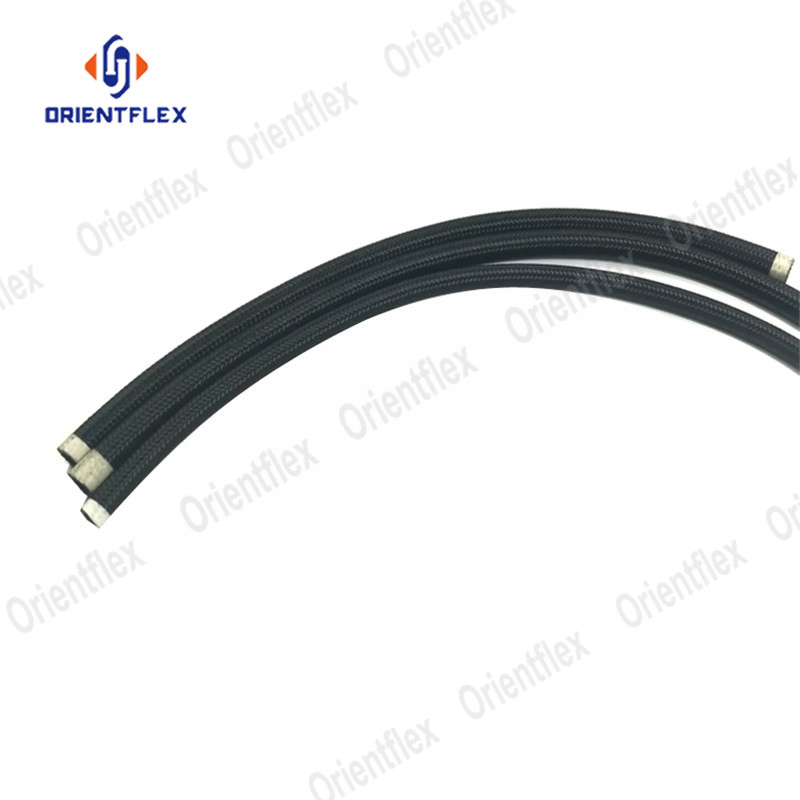

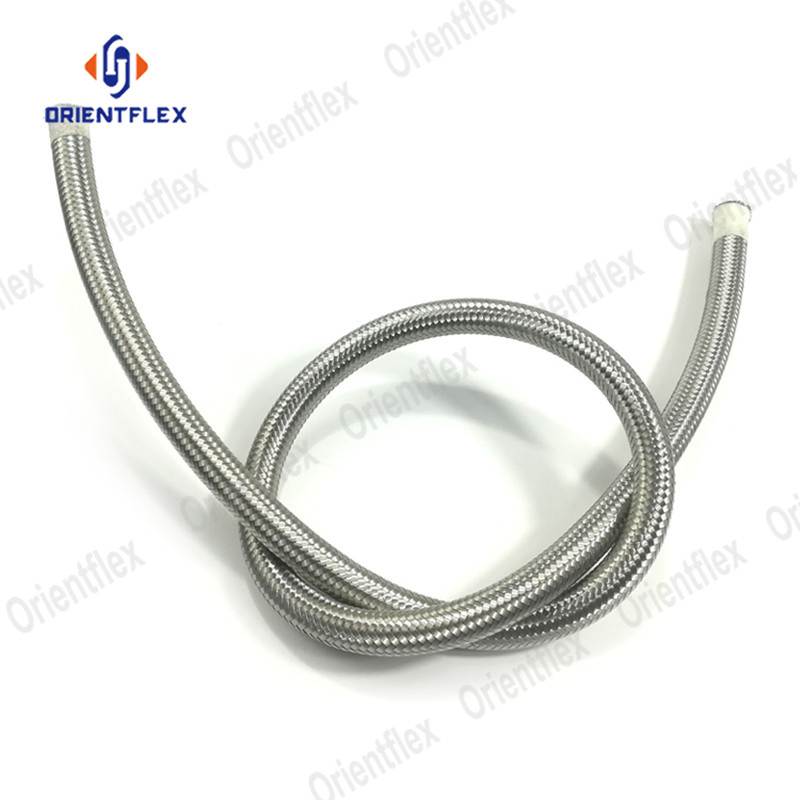

10mm Rubber Automatic Transmission Cooler Pressure Hose Replacement

1 / 5

10mm Rubber Automatic Transmission Cooler Pressure Hose Replacement

Customization:	Available
Material:	Synthetic Rubber
Capability:	Transmission Fluid Systems

Send Inquiry

Product Description

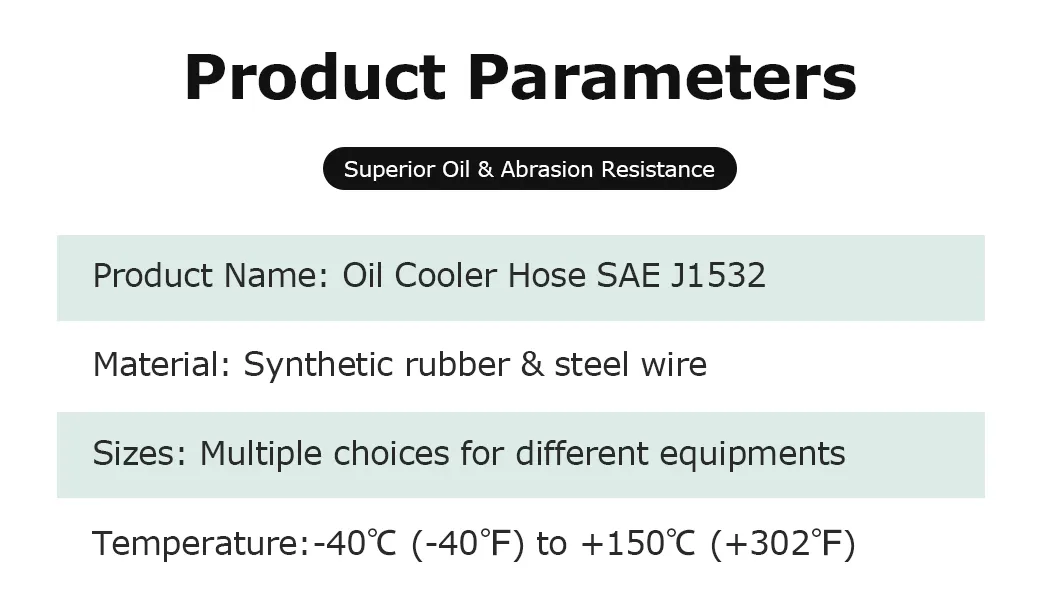

Basic Information

Model NO.

SAE J1532

Product Name

Oil Cooler Hose SAE J1532

Color

Black

Tube

Synthetic Rubber

Reinforcement

Braided, High-Tensile Steel Wire

Cover

Synthetic Rubber

W.P

5.2/7 MPa

B.P

17.5-42 MPa

Specification

5.56mm-28.5mm

Temperature

-40ºC to +150 ºC

Capacity

500,000 Meters Per Month

HS Code

3917310000

✓

Product Description

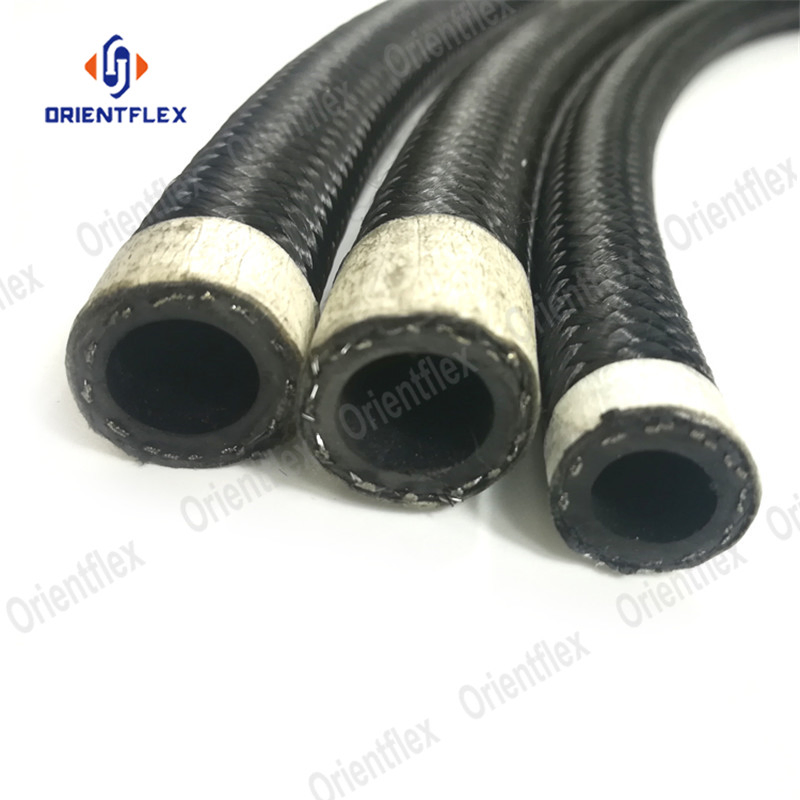

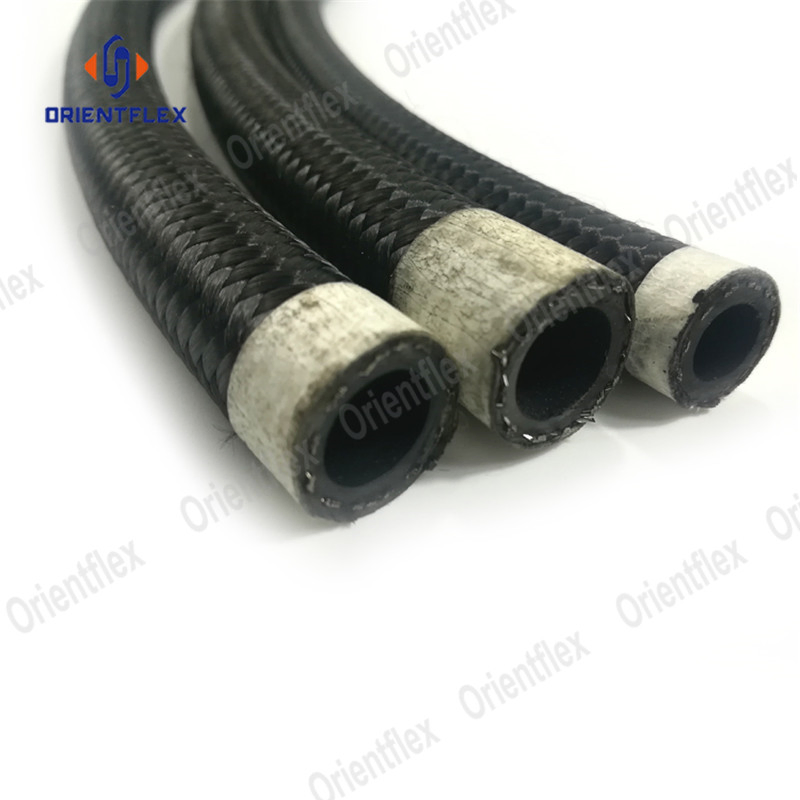

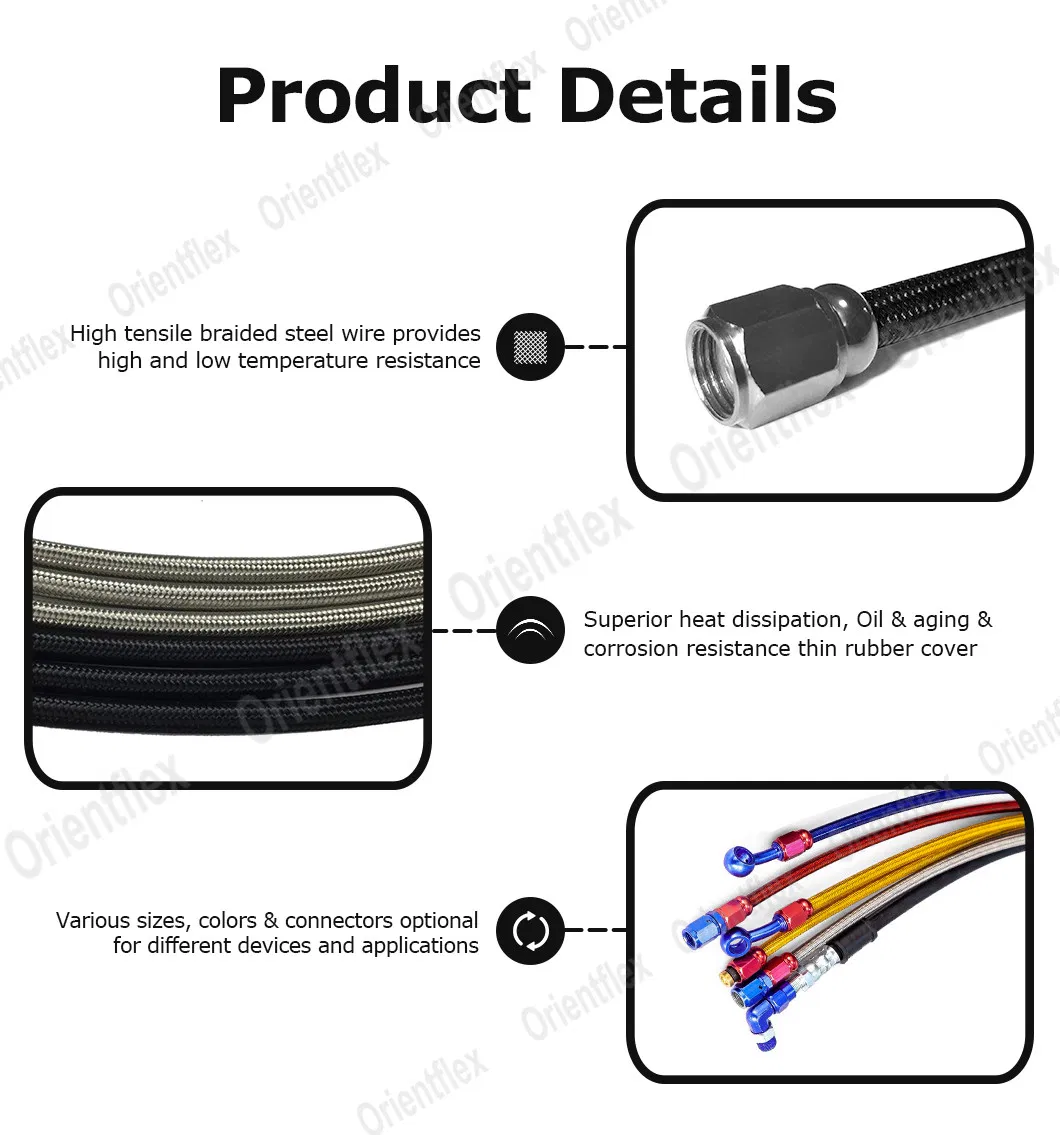

Construction:

Tube: Black, oil resistant, synthetic rubber.
Reinforcement: Braided, high-tensile steel wire. 1/4", 5/16", 3/8" and 1/2" sizes are one braid; 5/8", 3/4" and 1" sizes are two braids.
Cover: Black, oil, abrasion and weather resistant, thin synthetic rubber.

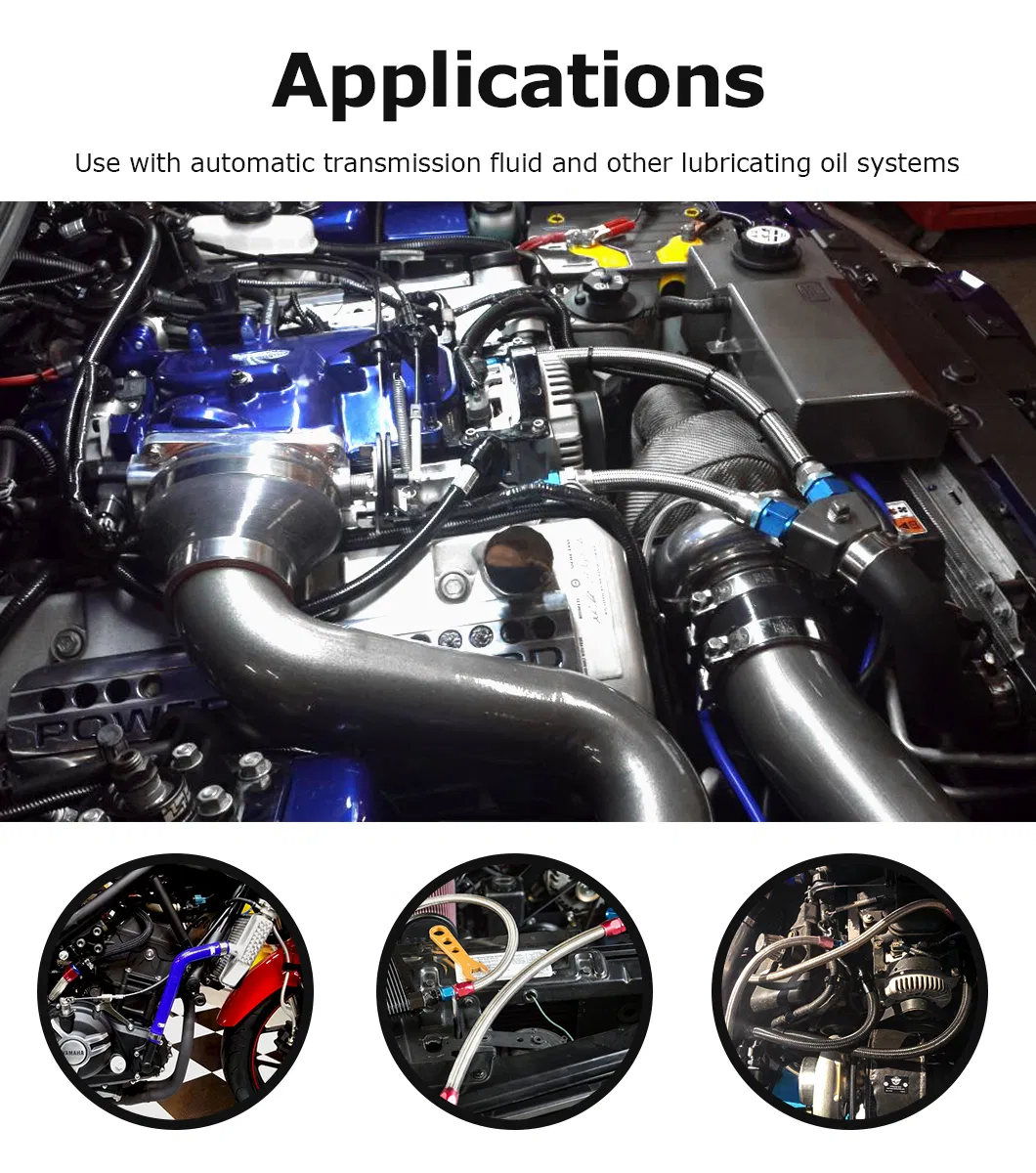

Application:

Designed for use with automatic transmission fluid and other lubricating oil systems.

Characteristics:

Oil resistance

Aging resistance

Corrosion resistance

Superior heat dissipation

High & Low Temp resistance

📊

Technical Specifications

Item Code	I.D (mm)	O.D (mm)	W.P (Mpa)	B.P (Mpa)
An04	5.56	11.13	7	42
An06	8.73	13.89	7	42
An08	11.12	16.28	7	35
An10	14.27	20.24	7	35
An12	17.47	23.82	7	26.3
An16	22.22	29.96	5.2	17.5
An20	28.5	35.81	5.2	17.5

Frequently Asked Questions

Q1: What are the primary applications for the SAE J1532 hose? A: It is specifically designed for automatic transmission fluids and various lubricating oil systems in automotive and industrial machinery.

Q2: What is the reinforcement material used in this oil cooler hose? A: The hose features high-tensile braided steel wire reinforcement, with one or two braids depending on the hose size.

Q3: What is the operating temperature range for this product? A: The hose can operate effectively in extreme temperatures ranging from -104 ºF to +302 ºF (-40ºC to +150 ºC).

Q4: Does the hose offer resistance to environmental factors? A: Yes, the synthetic rubber cover is designed to be oil, abrasion, and weather resistant, ensuring durability in harsh conditions.

Q5: Can I order specific lengths for the Oil Cooler Hose? A: Yes, the hose length can be supplied as per your specific requirements.

Q6: What are the key performance characteristics of this hose? A: Key features include superior oil and corrosion resistance, aging resistance, excellent heat dissipation, and high-pressure tolerance up to 42 MPa burst pressure.
