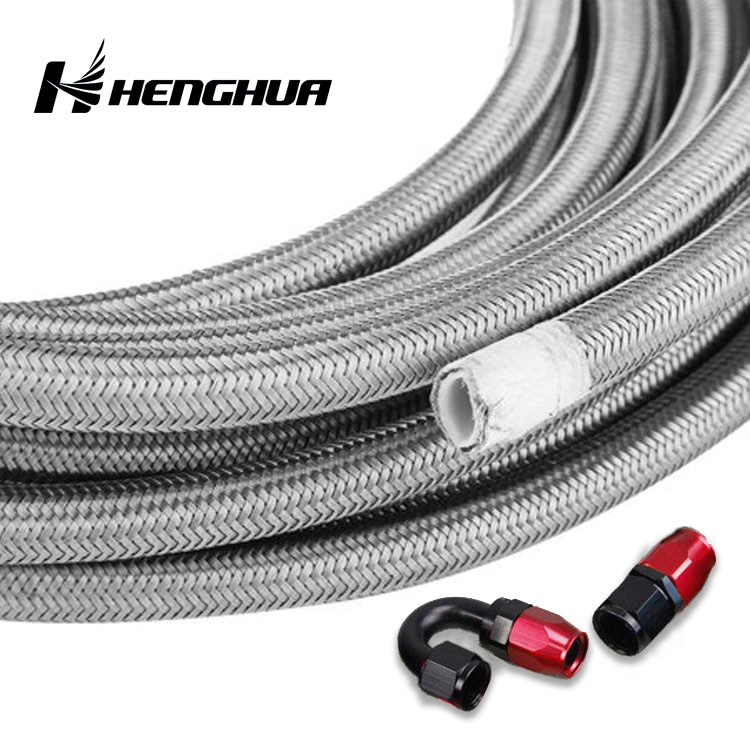

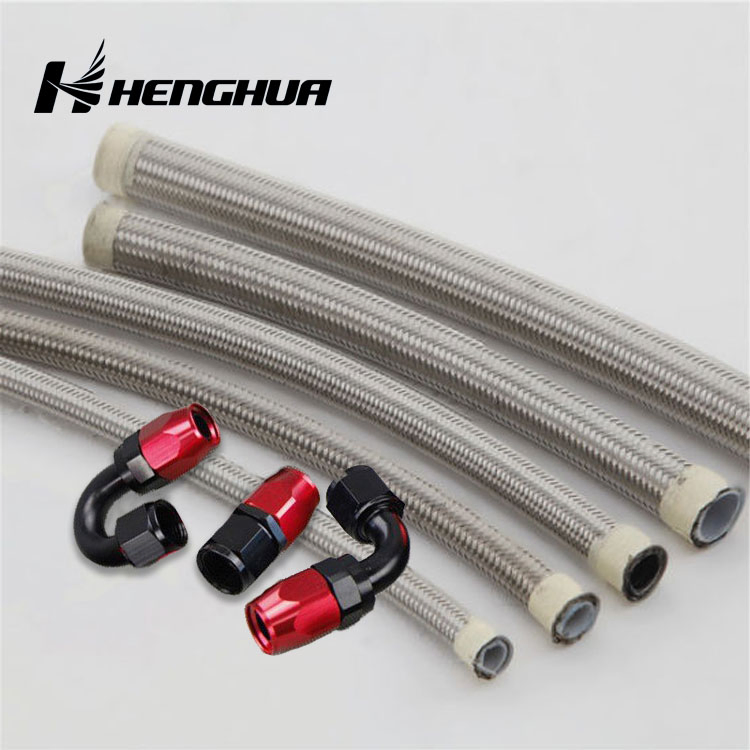

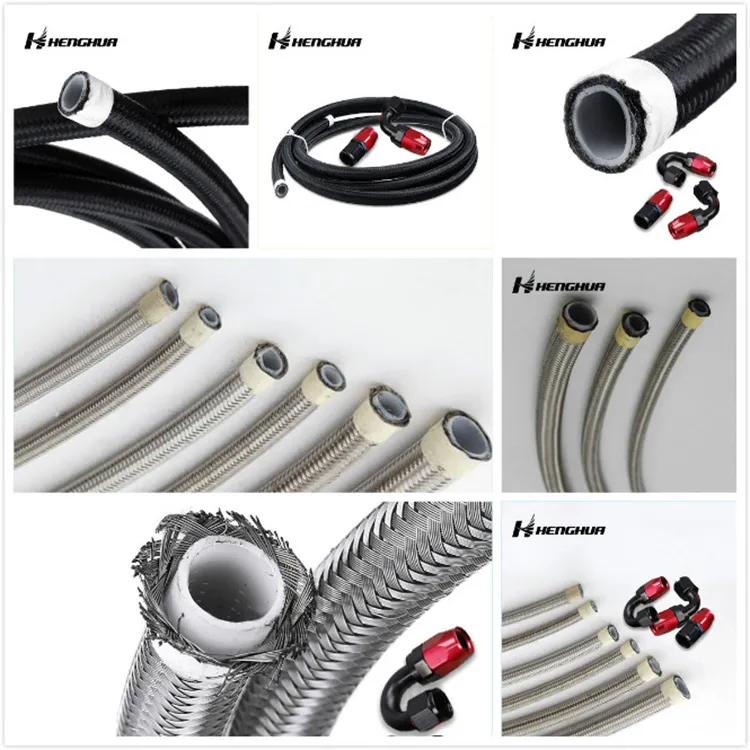

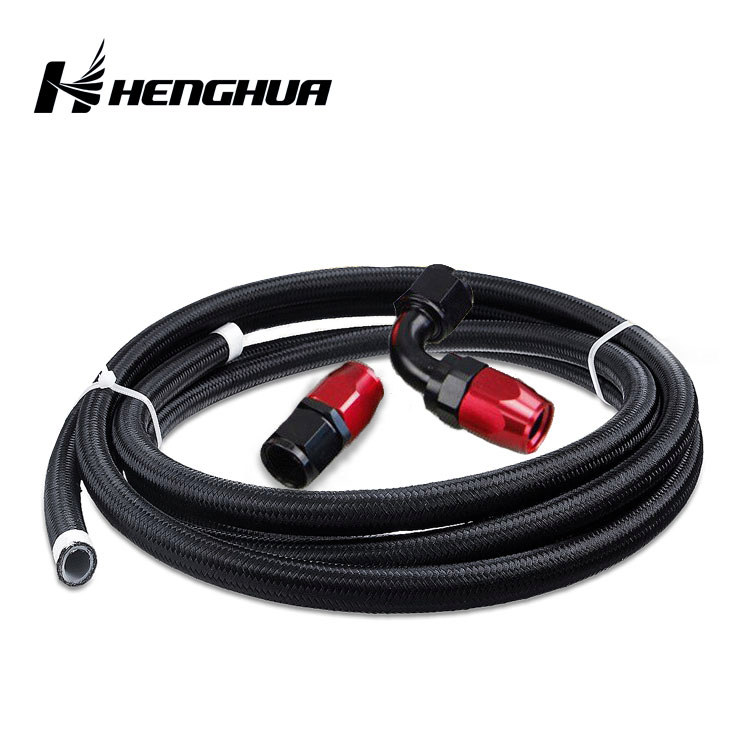

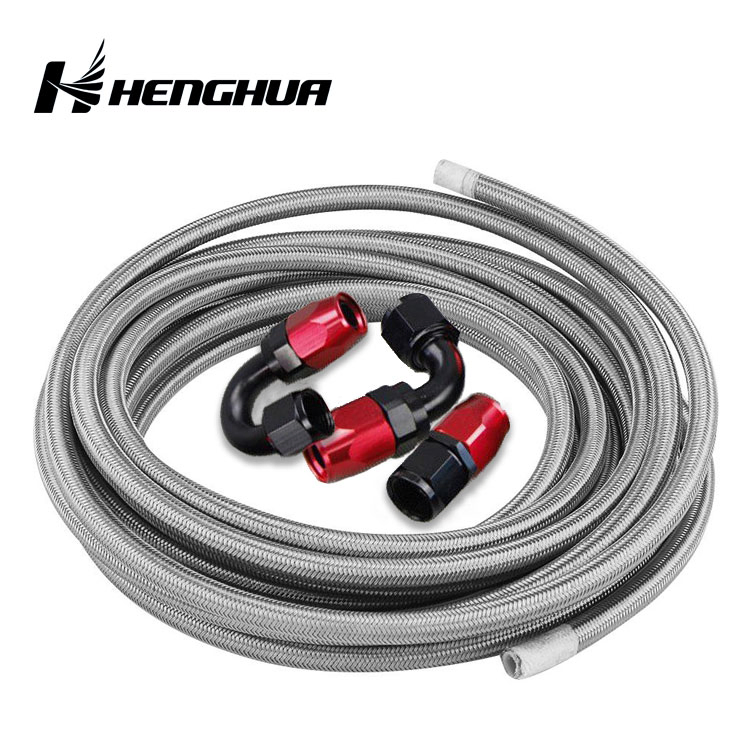

PTFE brake hose was originally developed for aircraft hydraulic systems. The inner tube is constructed from PTFE (Teflon), allowing it to withstand extreme pressures and temperatures while maintaining flexibility.
This hose is designed to handle a wide variety of fluids, including methanol, nitromethane, oil, coolant, brake fluid, transmission fluid, clutch fluid, power steering fluids, and nitrous oxide.
| SN | I.D (mm) | O.D (mm) | W.P (MPa) | B.P (MPa) | Bend Radius (mm) | Temp Min (℃) | Temp Max (℃) |
|---|---|---|---|---|---|---|---|
| 4 | 5.56 | 11.17 | 3.45 | 13.8 | 50.8 | -40 | 148.9 |
| 6 | 8.71 | 14.22 | 3.45 | 13.8 | 63.5 | -40 | 148.9 |
| 8 | 11.13 | 17.2 | 3.45 | 13.8 | 88.9 | -40 | 148.9 |
| 10 | 14.29 | 20.83 | 3.45 | 13.8 | 101.6 | -40 | 148.9 |
| 12 | 17.46 | 24.38 | 3.45 | 13.8 | 114.3 | -40 | 148.9 |
| SN | I.D (mm) | O.D (mm) | W.P (MPa) | B.P (MPa) | Bend Radius (mm) | Temp Min (℃) | Temp Max (℃) |
|---|---|---|---|---|---|---|---|
| 4 | 5.56 | 11.13 | 7 | 42 | 50.8 | -40 | 148.9 |
| 6 | 8.73 | 13.89 | 7 | 42 | 63.5 | -40 | 148.9 |
| 8 | 11.12 | 16.28 | 7 | 35 | 88.9 | -40 | 148.9 |
| 10 | 14.27 | 20.24 | 7 | 35 | 101.6 | -40 | 148.9 |
| 12 | 17.47 | 23.82 | 7 | 26.3 | 114.3 | -40 | 148.9 |
| 16 | 22.22 | 29.36 | 5.2 | 17.5 | 139.7 | -40 | 148.9 |
