Product Description

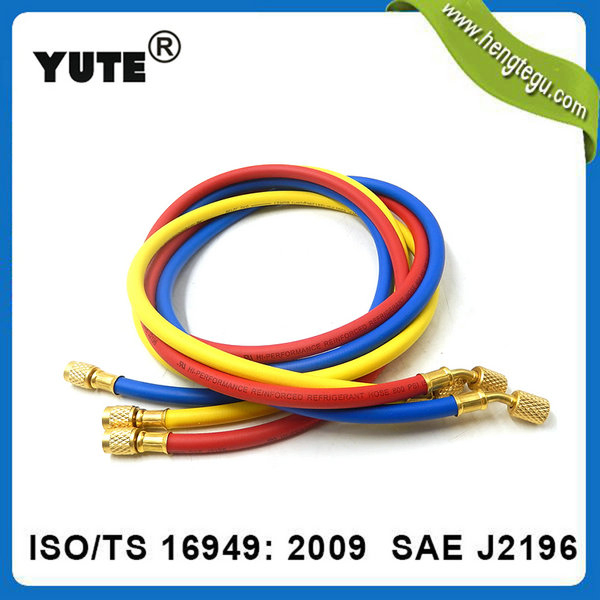

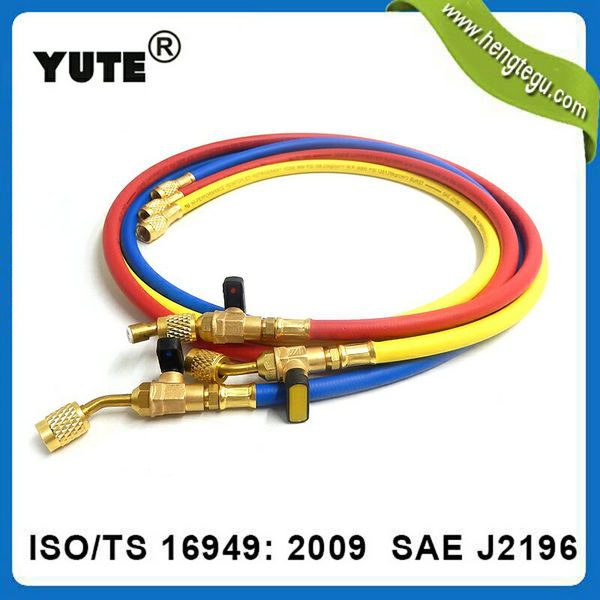

Applications: Intended for conducting liquid and gaseous refrigerants for service connections from mobile air conditioning systems to service equipment.

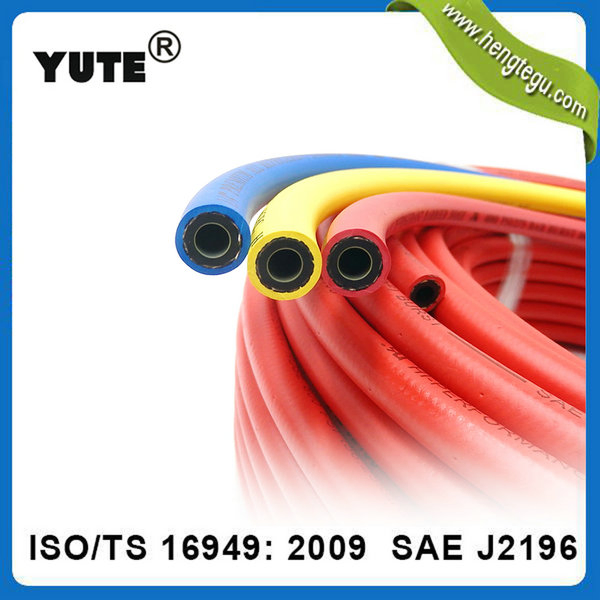

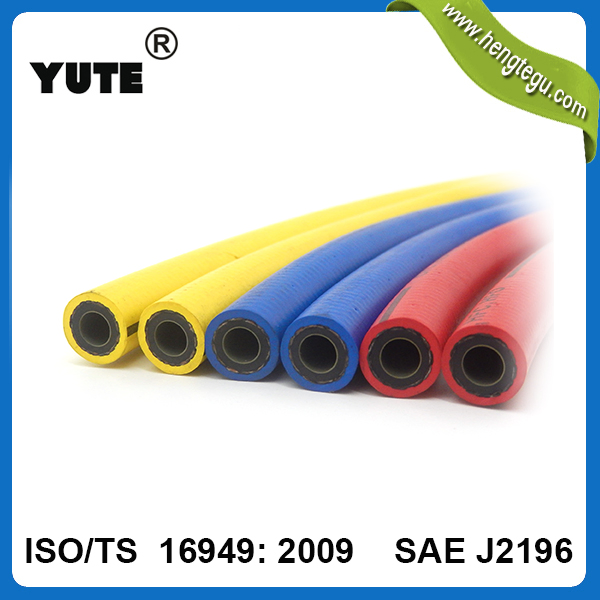

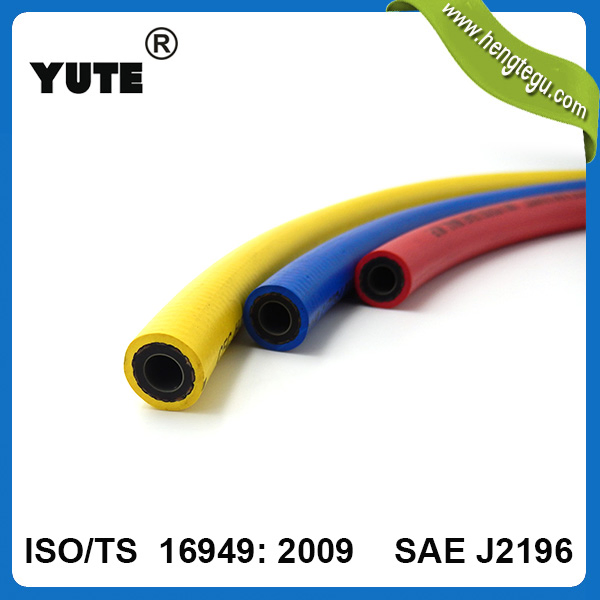

Construction:
- Tube: Refrigerant-, oil-resistant with high performance formula.
- Reinforcement: High tensile braided fiber.
- Cover: Weather- and aging-resistant with high performance synthetic rubber.
Working Temperature: -30ºC to +95ºC (-34ºF to +203ºF)
Standard: SAE J2196
| No |
I.D. (Inner Diameter) |
O.D. (Outer Diameter) |
W.P. (Working Pressure) |
B.P. (Burst Pressure) |
| inch |
mm |
Tol. |
inch |
mm |
Tol. |
Bar |
PSI |
Bar |
PSI |
| 1 |
7/32 |
5.5 |
±0.2 |
29/64 |
11.5 |
±0.3 |
35 |
500 |
175 |
2500 |
| 2 |
7/32 |
5.5 |
±0.2 |
29/64 |
11.5 |
±0.3 |
42 |
600 |
210 |
3000 |
| 3 |
7/32 |
5.5 |
±0.2 |
29/64 |
11.5 |
±0.3 |
56 |
800 |
280 |
4000 |
| 4 |
3/8 |
9.5 |
±0.4 |
11/16 |
17.5 |
±0.5 |
32 |
465 |
128 |
1860 |
🏭
Manufacturing Capabilities

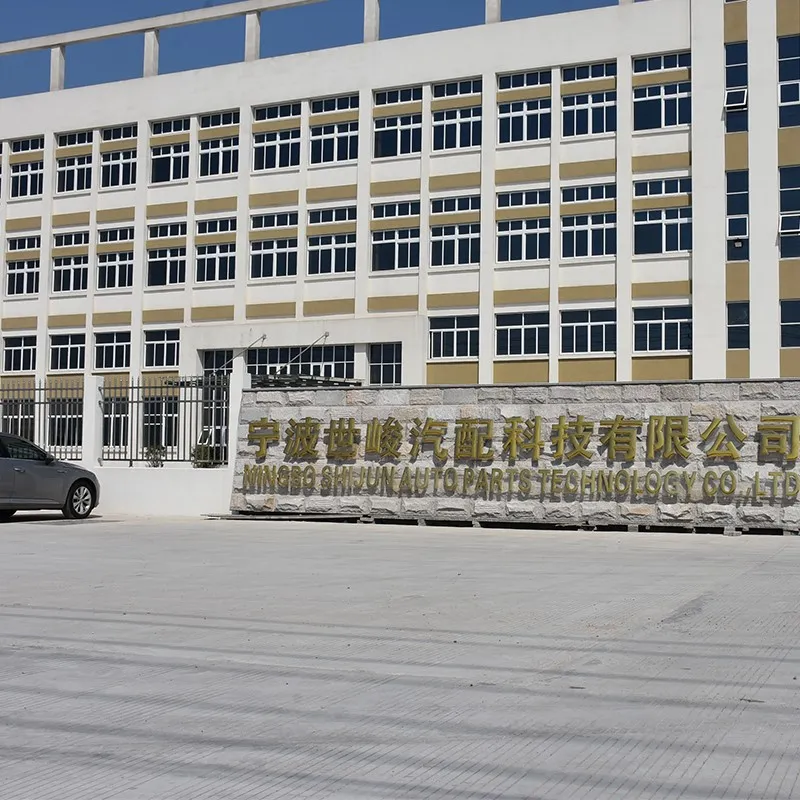

Specializing in the development and production of automobile piping systems, these products are essential for automobile transmission, chassis, and cooling systems. The facility achieved ISO/TS 16949:2009 quality management system certification in 2014. Product certifications include CCC, ROHS, DOT, AMECA, and CE.
A dedicated research and development center alongside an inspection & testing center ensures high standards. With an automated rubber mixing center, the hardware configuration guarantees consistency and stability throughout the production process. R&D follows SAE and DIN standards widely recognized in the United States and Europe.
❓
Frequently Asked Questions
Q1. What are your terms of packing?

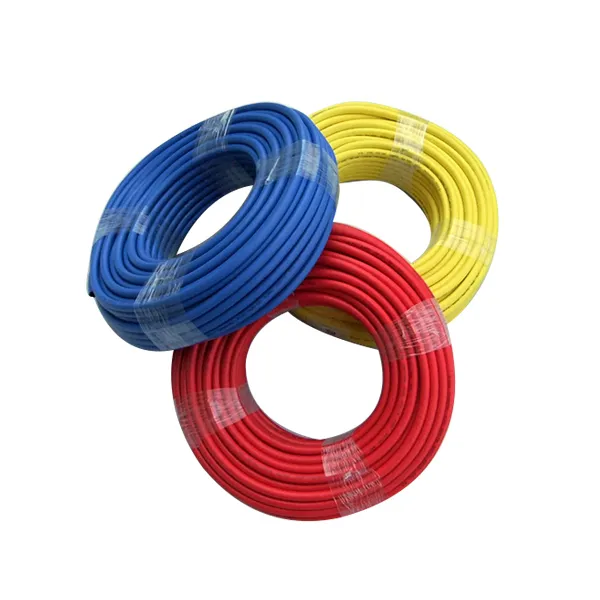

Generally, goods are packed in neutral PVC film and brown cartons. Customized branded boxes can be provided upon proper authorization.
Q2. What are the terms of payment?
T/T 30% as deposit, and 70% before delivery. Product and package photos are provided before the final balance payment.
Q3. What are the delivery terms and lead times?
Delivery terms include EXW, FOB, CFR, CIF, and DDU. Generally, it takes 30 to 45 days after receiving the advance payment, depending on the order volume.
Q4. Can production be customized to samples?
Yes, production can be carried out based on provided physical samples or technical drawings.
Q5. What is the sample policy?
Samples can be supplied if parts are in stock; however, customers are responsible for the sample and courier costs.
Q6. Is there a testing protocol before delivery?
Yes, a 100% test is conducted on all goods before they are dispatched for delivery to ensure quality.
