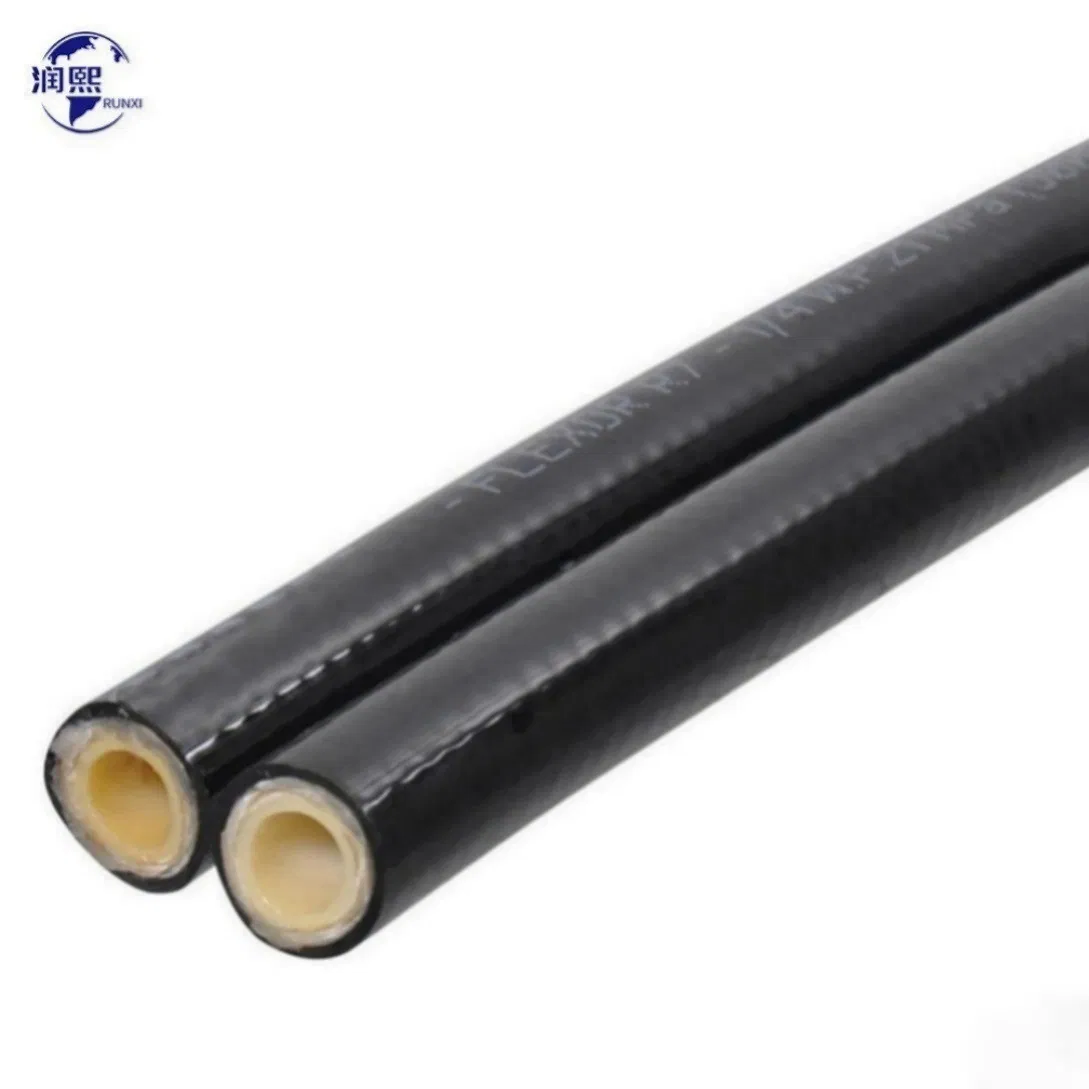

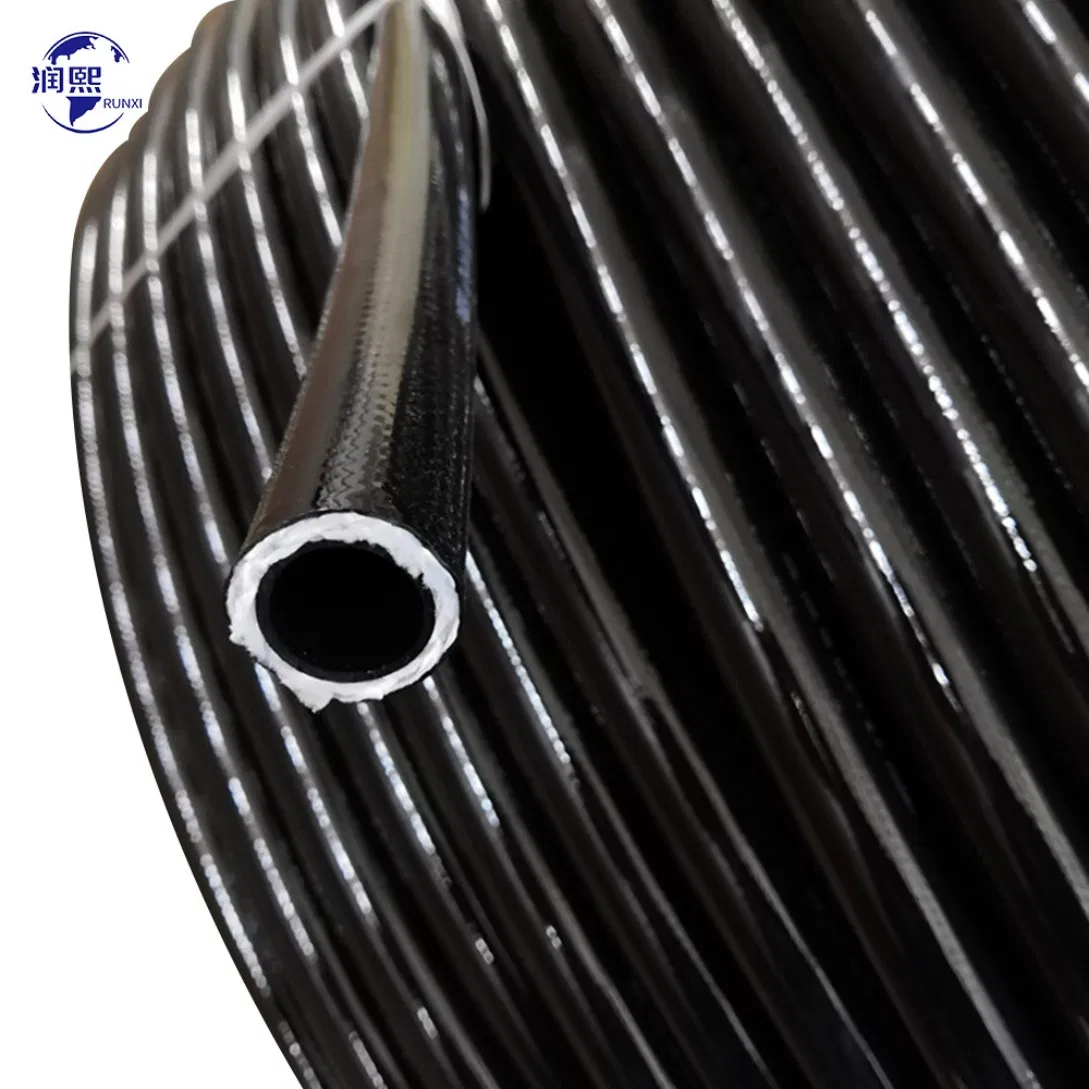

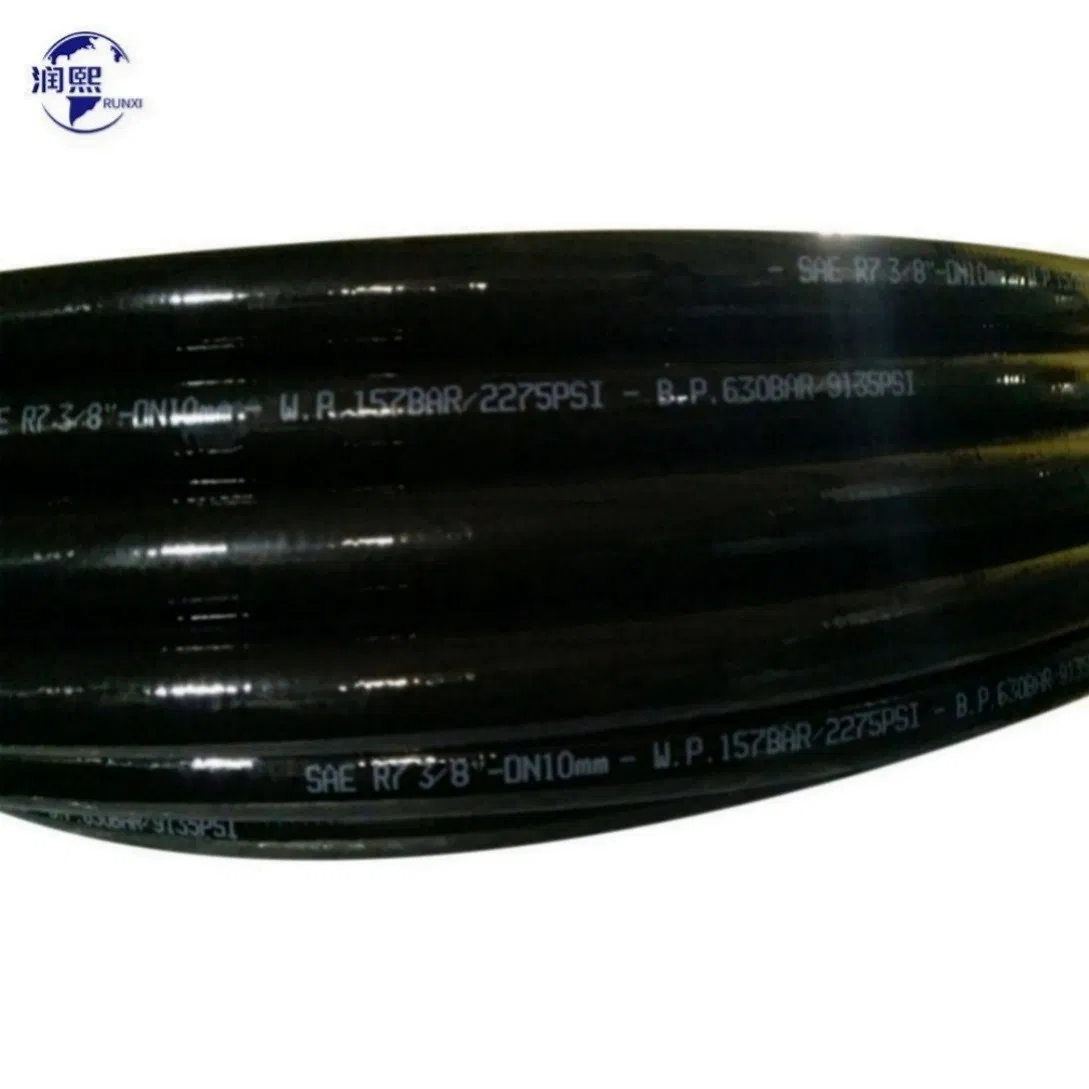

SAE 100 R8 Thermoplastic Hydraulic Hose for Hydraulic Clutch Systems

Basic Information

Product Name:Thermoplastic Hydraulic Hose

Standard:SAE 100 R7/R8

Color:Red/Black/Blue/Orange, etc.

Application:Petroleum Base Hydraulic Fluids

Working Temp:-40 to 93°C

Surface:Smooth

Feature:Flexible, Corrosion & Abrasion Resistant

Certification:ISO9001:2008, SGS, CE

Product Description

SAE 100R7/Thermoplastic Hydraulic Hose is a thermoplastic elastomer hydraulic hose used for medium-pressure applications. It is typically used to convey petroleum-based fluids, water-based fluids, liquefied petroleum gas, fuels, and liquid transfer in low to medium-pressure hydraulic systems.

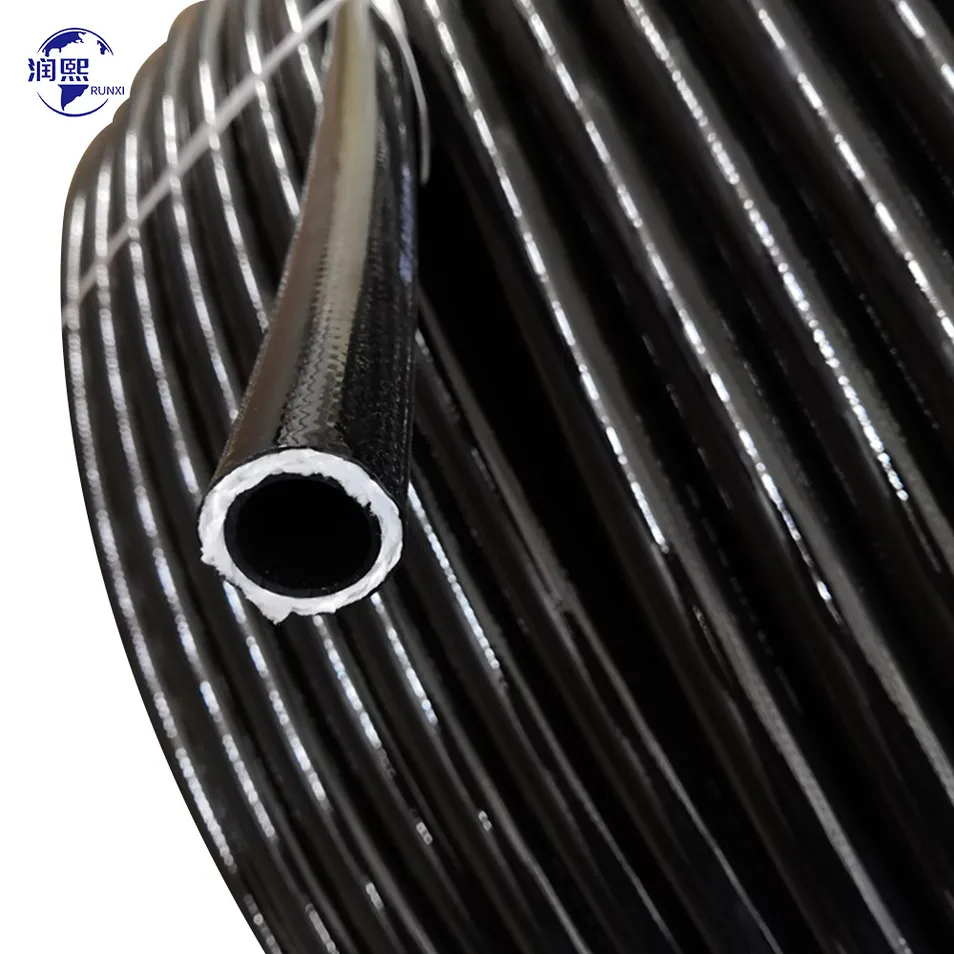

Key Features

Made of special synthetic rubber for excellent oil and heat resistance.
High pressure capacity and excellent pulse performance.
Soft tube body with minimal deformation under pressure.
Excellent bending and fatigue resistance.
Available in lengths up to 50 meters upon request.

Hose Construction & Application

⚙️

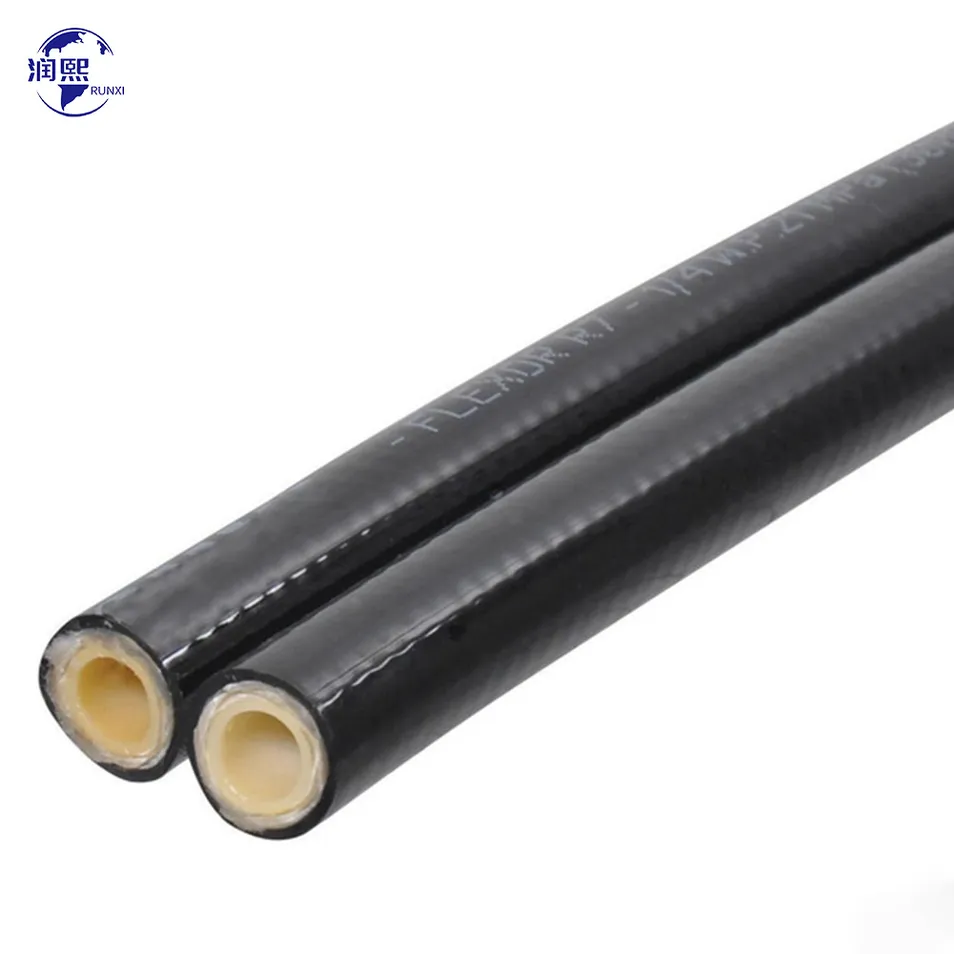

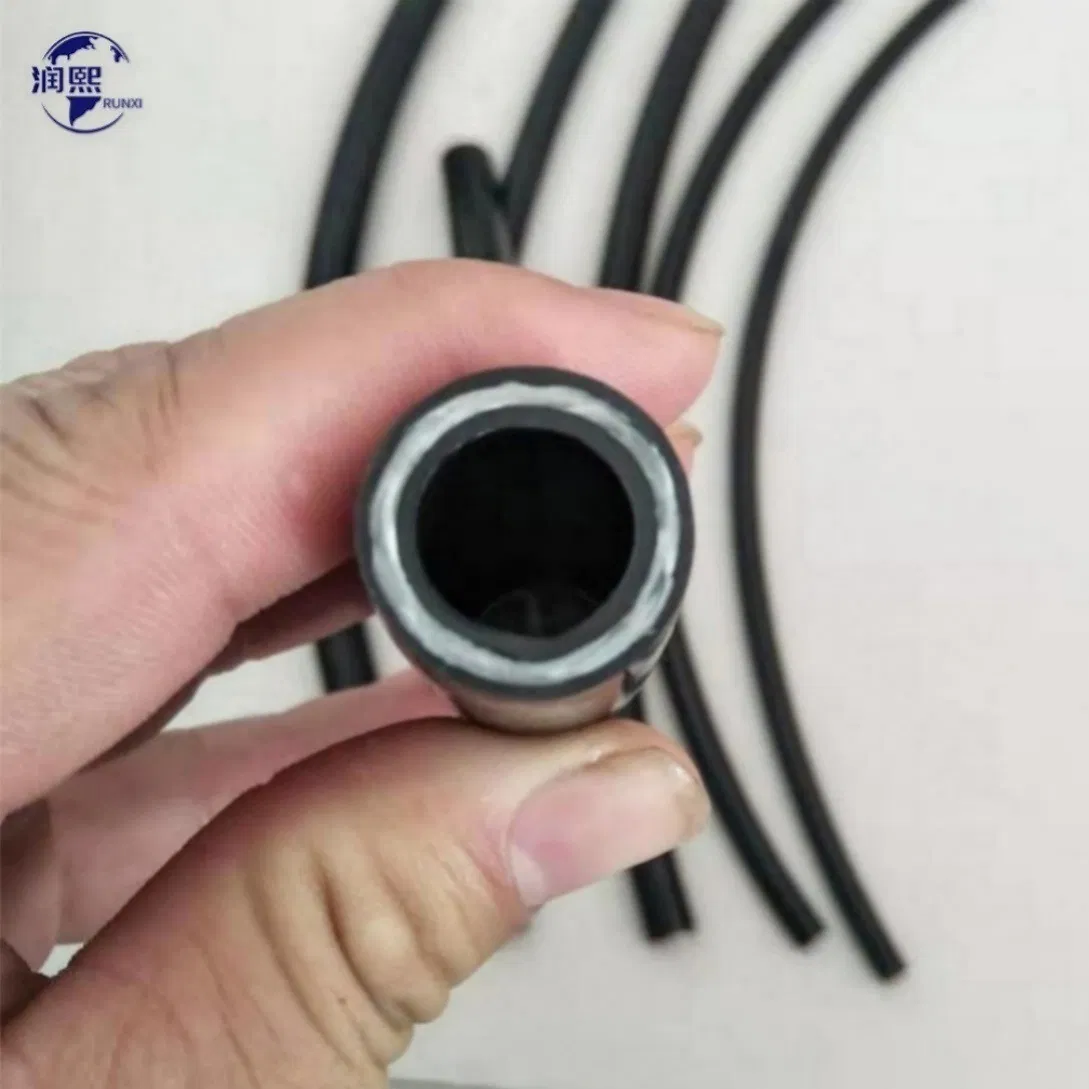

Construction: This hose consists of a thermoplastic inner tube, a layer of synthetic fiber reinforcement, and a weather-resistant thermoplastic cover (Nylon, Polyurethane, or Polyester).

🚀

Applications: Widely used in Construction, Agriculture, Forklift Trucks, Aerial Platforms, Scissor Lifts, Cranes, Industrial gases, and Aerospace pipeline systems.

Technical Specifications

SAE 100R7 Thermoplastic Hose Data

Size (mm)	Size (Inch)	I.D Max (mm)	O.D Max (mm)	W.P (Psi)	B.P (Mpa)
5	3/16	5.4	11.4	3045	84
6.3	1/4	7.0	13.7	2780	77
10	3/8	10.3	18.4	2275	63
12.5	1/2	13.5	22.5	2030	56
19	3/4	19.8	28.6	1260	35
25	1	26.4	36.7	1015	28

SAE 100R8 Thermoplastic Hose Data

Size (mm)	Size (Inch)	I.D Max (mm)	O.D Max (mm)	W.P (Psi)	B.P (Mpa)
5	3/16	5.4	14.6	5075	140
6.3	1/4	7.0	16.8	5070	140
10	3/8	10.3	20.3	4060	112
12.5	1/2	13.5	24.6	3550	98
19	3/4	19.8	33.0	2275	62.8

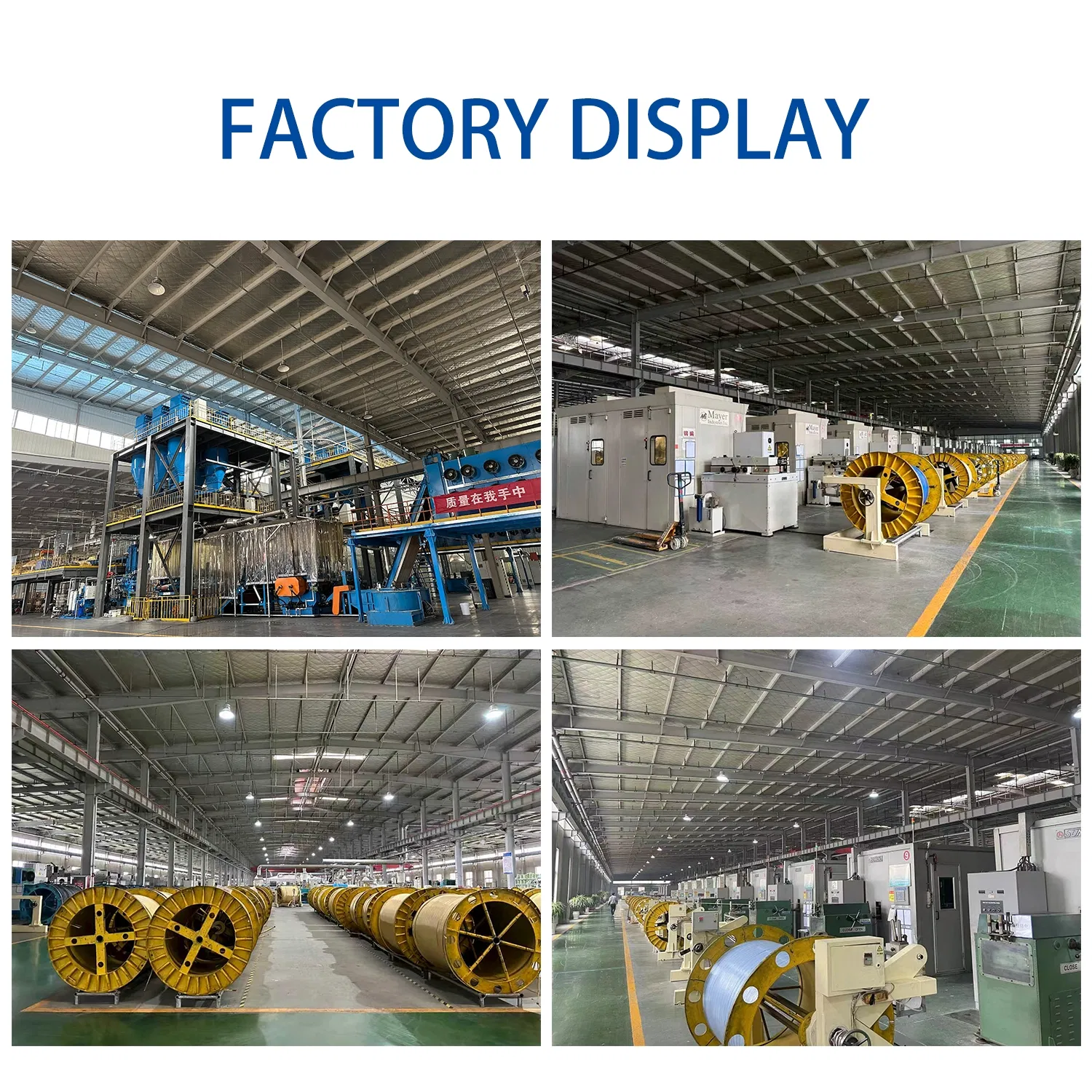

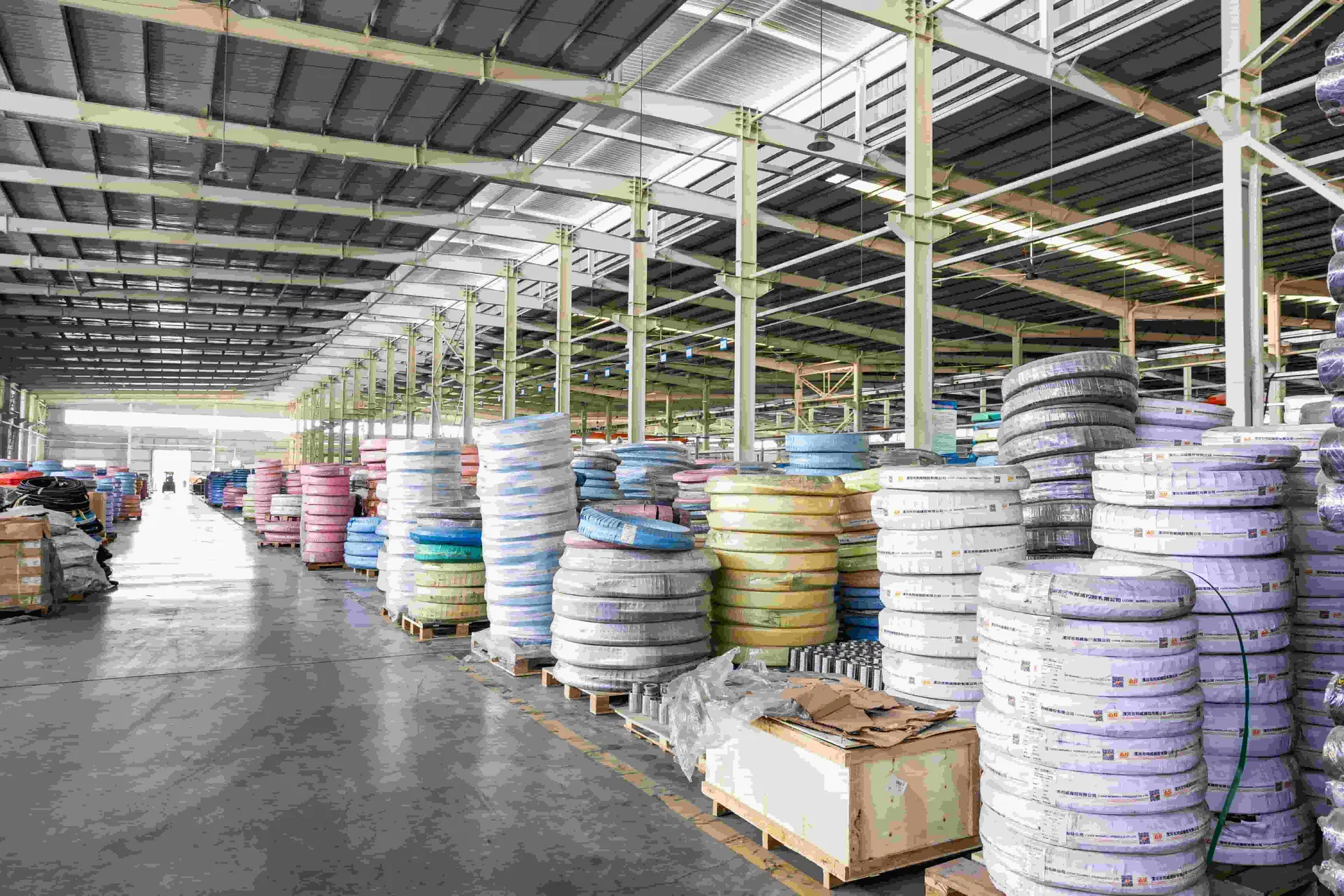

Manufacturing & Quality Control

Advanced Equipment: Automatic welding and forging lines for bellows and corrugated pipes.
Professional Design: Selection design and strength checks optimized via professional software.
Versatile Production: 13 different specifications for varied industrial requirements.
Global Reach: Products served in over 80 regions worldwide with 1v1 targeted service.

Frequently Asked Questions

Q1: What are the primary applications for SAE 100R7/R8 hoses? These hoses are ideal for medium to high-pressure hydraulic systems, pneumatic systems, and conveying petroleum or water-based fluids in construction, agriculture, and aerospace industries.

Q2: What is the standard temperature range for these thermoplastic hoses? The standard working temperature range is -40ºC to +93ºC (-40ºF to +200ºF). For specific materials like PA, it can handle up to +100ºC.

Q3: How is the hose packaged for delivery? Usually, the goods are packed in neutral white wearable woven bags. Customized branded boxes are available with proper authorization letters.

Q4: What are the payment and delivery terms? Typical terms include T/T 30% as deposit and 70% before delivery. Delivery terms offered include EXW, FOB, CFR, CIF, and DDU.

Q5: How long is the lead time for a standard order? Generally, it takes 20 to 60 days after receiving the advance payment, depending on the items and the total order quantity. A 20' container usually takes about 15-30 days.

Q6: Are these hoses resistant to chemicals and abrasion? Yes, the polyurethane cover provides excellent resistance to oil, weather, and high abrasion, ensuring a long service life in harsh environments.
