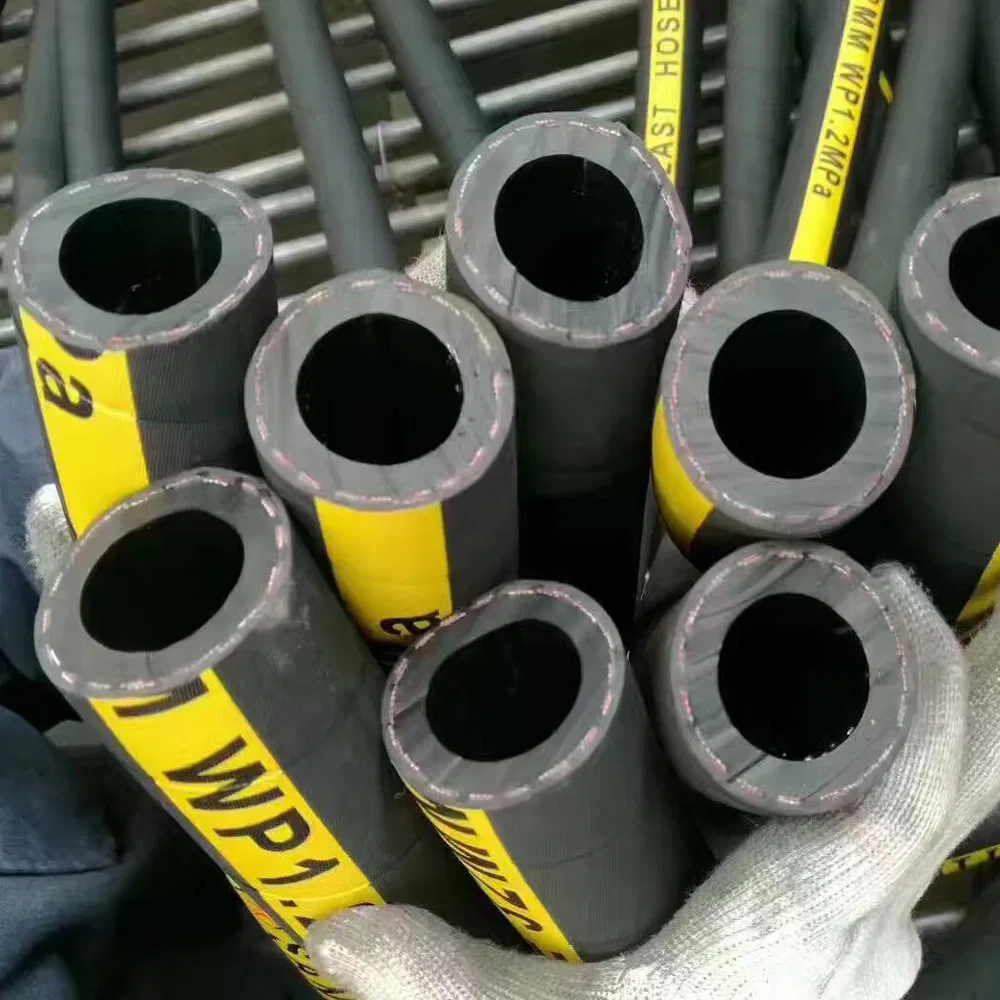

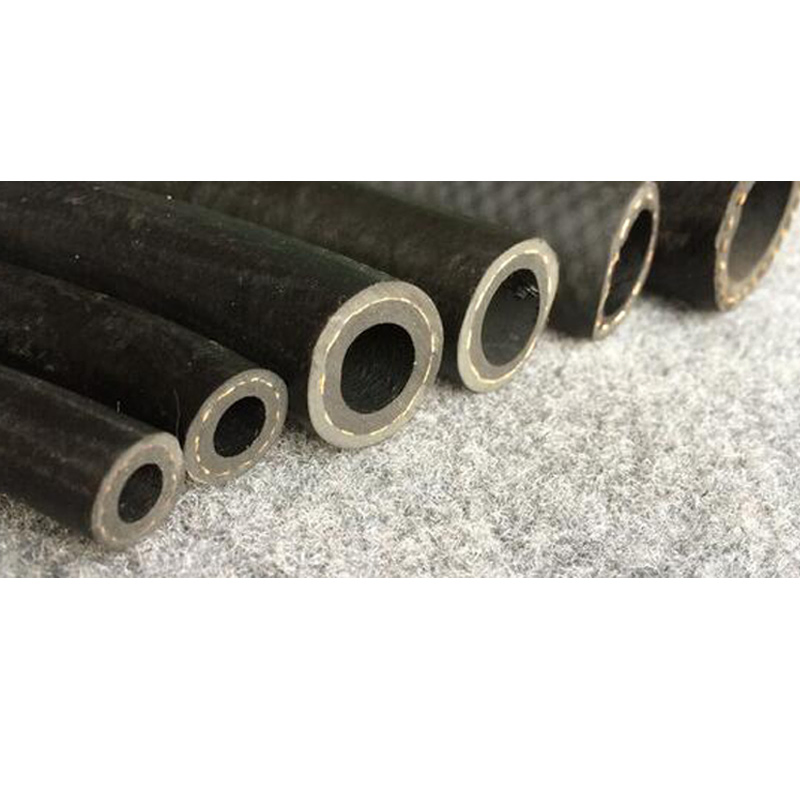

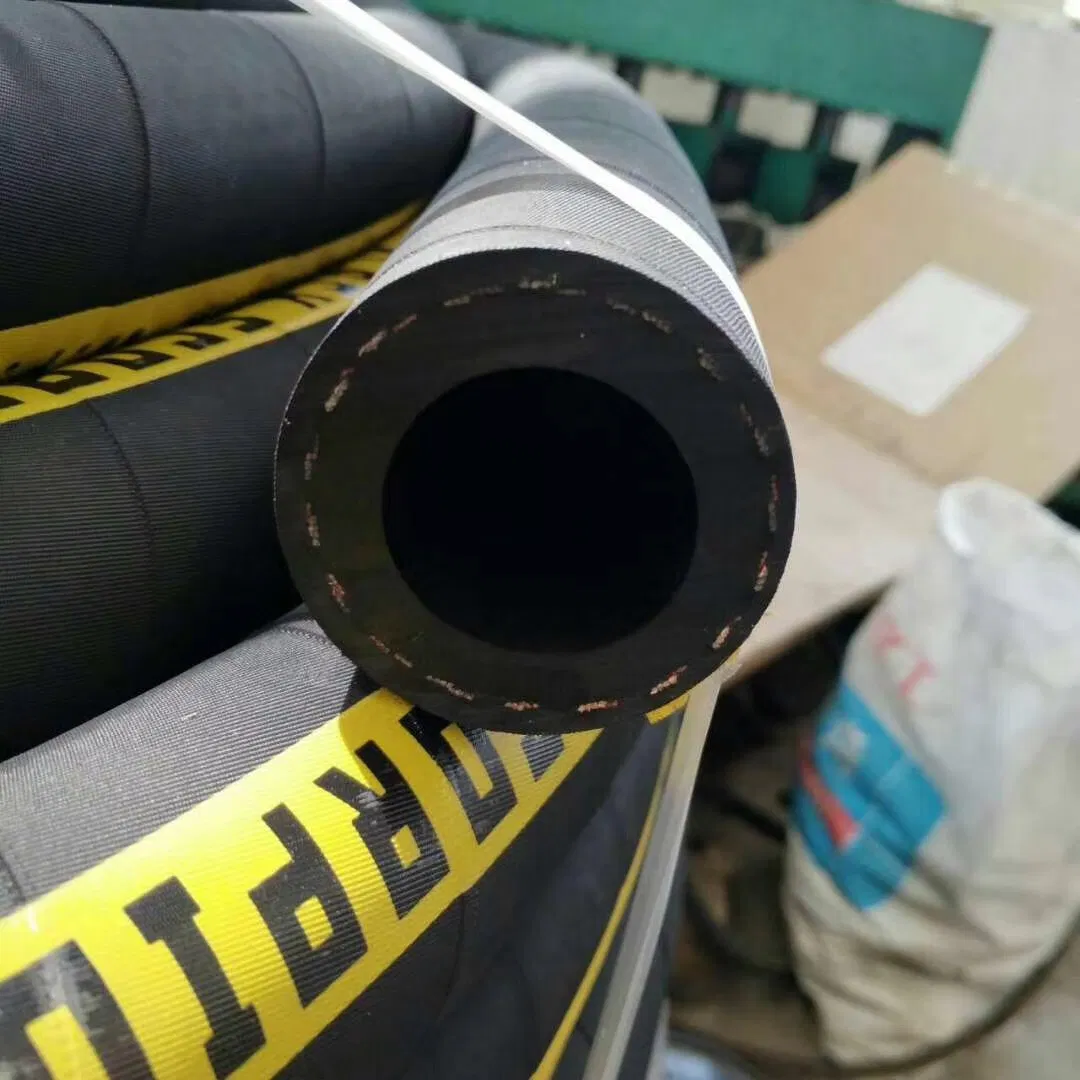

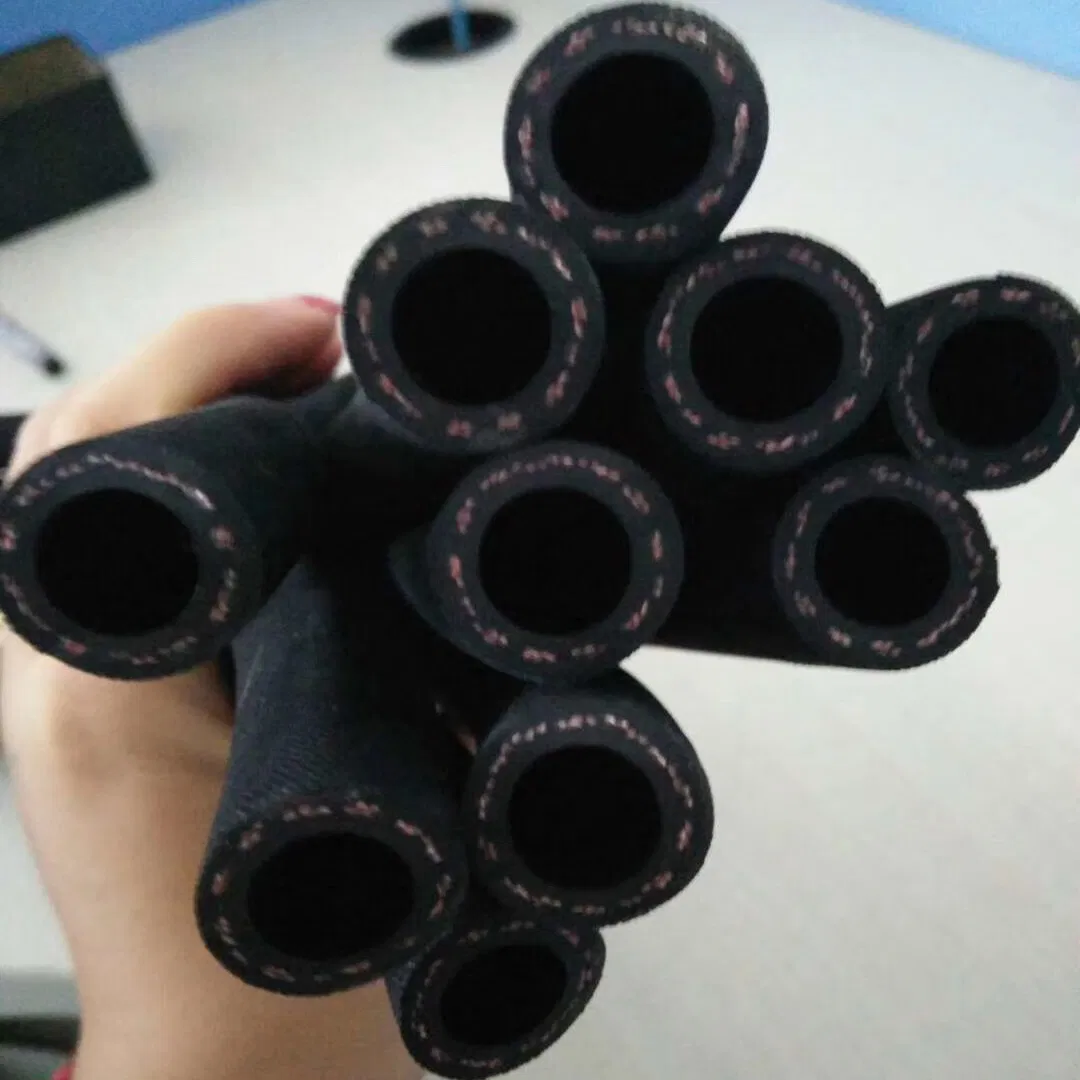

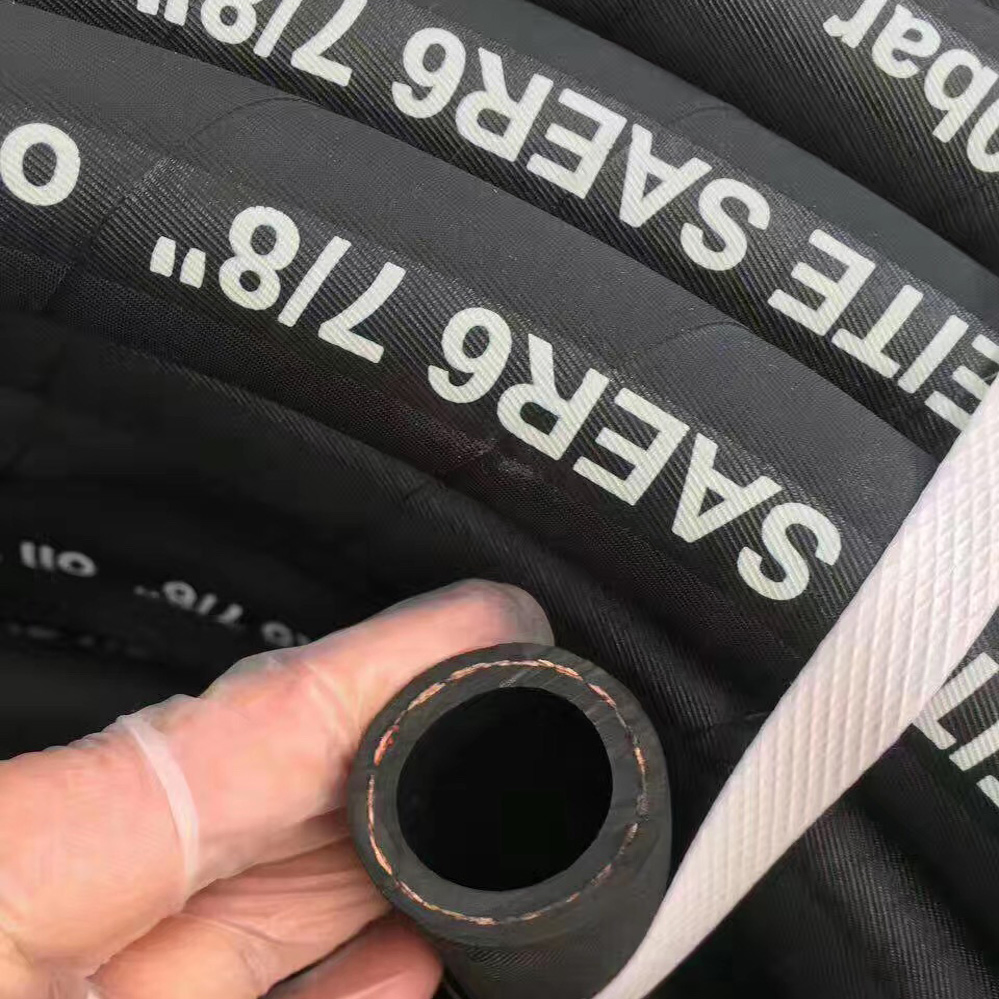

SAE J1532 300psi Transmission Oil Cooler Line Rubber Hose

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Information

Size
3/8''
Working Pressure
30bar, 435psi
Tube
Black Smooth SBR Blended
Reinforcement
Textile Braided High Tensile Synthetic Yarn
Cover
EPDM
Temperature
-35℃ to +80℃
Package
PP Woven Bag or Customized
Specification
10-100mm
Trademark
OEM
Origin
China
HS Code
4009210000
Capacity
700,000 Meters / Month
⚙️

Product Description

Our main product range includes high pressure hydraulic hoses, steel wire braid hoses, steel wire spiral hoses, fabric braid hoses, steam hoses, sandblasting hoses, industrial and auto hoses, and special function hoses. We specialize in customizing rubber hoses such as extra long and special shapes, ranging in length from 20 to 200 meters upon request.

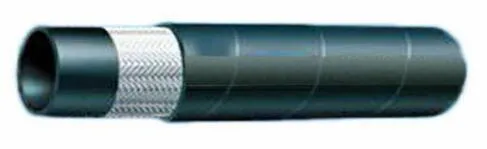

SAE J1532 Transmission Oil Cooler Line Rubber Hose

🚀 KEY PERFORMANCE

  • Meets EN/DIN and new SAE rated working pressures.
  • Designed to convey a wide range of acids and alkali solutions under pressure.
  • Appearance: Available in wrap or smooth cover options.
  • Branding: Precise printing and indelible branding with embossed technology.
  • Colors: Black, Red, Blue, Yellow, Green, Gray.

🛠️ MATERIAL SPECIFICATIONS

  • Tube: Black smooth SBR blended.
  • Reinforcement: Textile braided high tensile synthetic yarn.
  • Cover Compound: EPDM / weather and ozone resistant; black, red, or yellow SBR blended.
  • Temperature Range: Continuous working from -30°C to +80°C (-20°F to +180°F).

📍 APPLICATIONS

Ideal for handling crude oil, salt and fresh water, tank bottoms, drilling mud, dilute solutions of hydrochloric acids, diesel fuels, and sewage transfer.

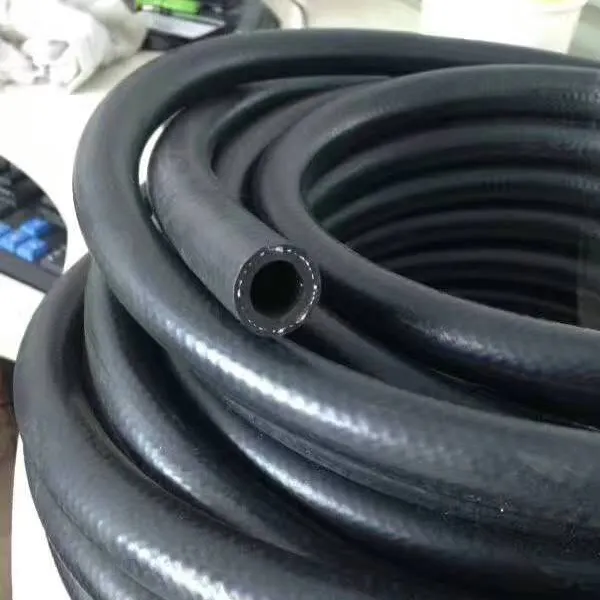

SAE J1532 Details
📊

Technical Data Specifications

Model No. Hose Size I.D. O.D. Max W.P. Min B.P. Min B.R. W.T.
DN Dash Inch mm Bar Psi Bar Psi mm Kg/m
O 1010-63/8"18304359013051300.30
O 1212-81/2"23304359013051800.46
O 1616-105/8"2625362.57510892100.53
O 1919-123/4"2925362.57510892400.60
O 2222-147/8"3220290609002800.80
O 2525-161"3520290609003750.93
O 3232-201-1/4"4215217.5456544201.25
O 3838-241-1/2"4815217.5456545001.47
O 4545-281-3/4"5612174365226301.76
O 5050-322"6412174365226301.92
O 5757-362-1/4"7010145304508552.10
O 6464-402-1/2"7810145304509602.56
🏭

Our Factory

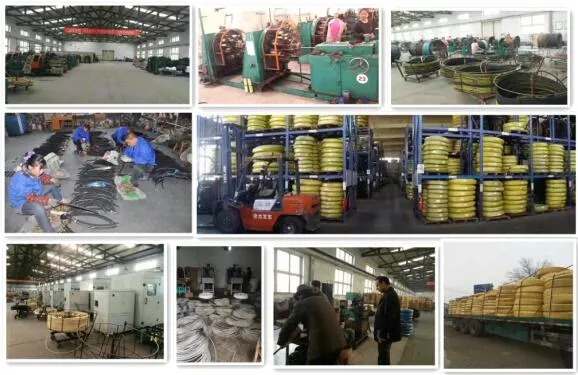

Factory Overview
Production Line

Frequently Asked Questions

Do you produce smooth or cloth wrapped covers?
Yes, we can produce both types of covers, depending on the customer's specific request.
Can you produce products with my own brand?
Yes, OEM and ODM services are warmly welcome. We believe both parties can benefit significantly through such cooperation.
Could we get free samples?
Yes, we can provide free samples for your evaluation.
Does your product come in different colors?
Yes, we currently provide hoses in black, grey, red, blue, and yellow.
Could you crimp the hose for us?
Yes, we provide hose assembly crimping services for our customers.
How long does my order take to be delivered?
Delivery usually takes 5 to 30 days, depending on the order quantity and current stock levels.

If you are interested in our products or have special requirements, welcome to contact us with any enquiries!
