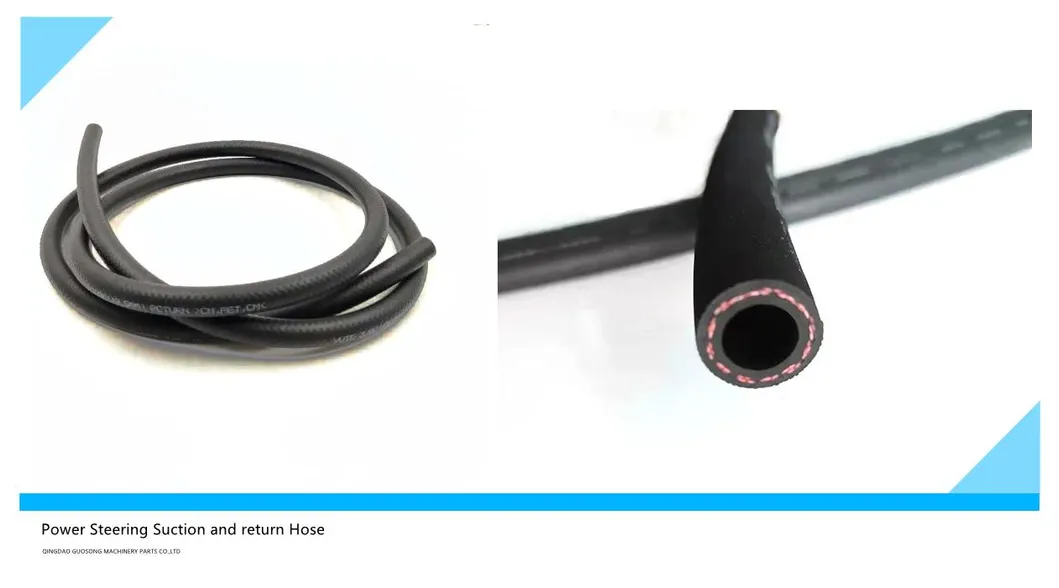

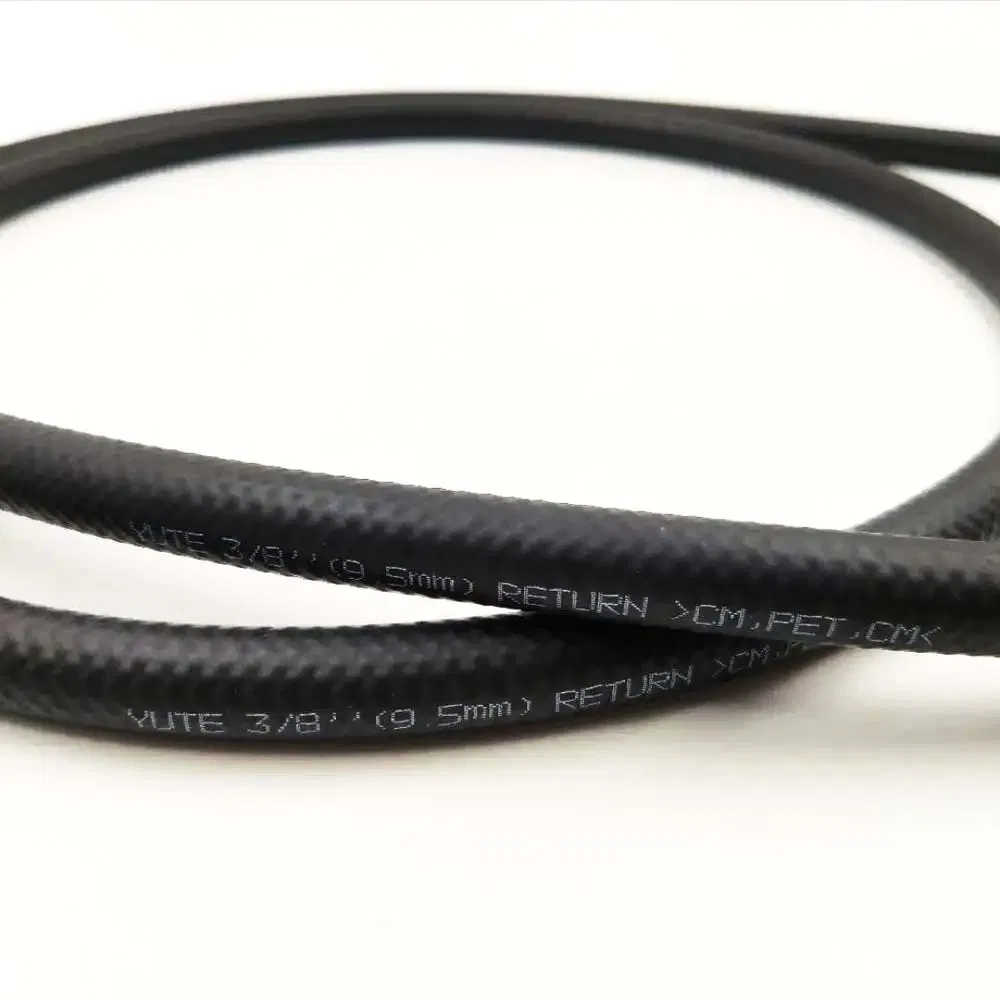

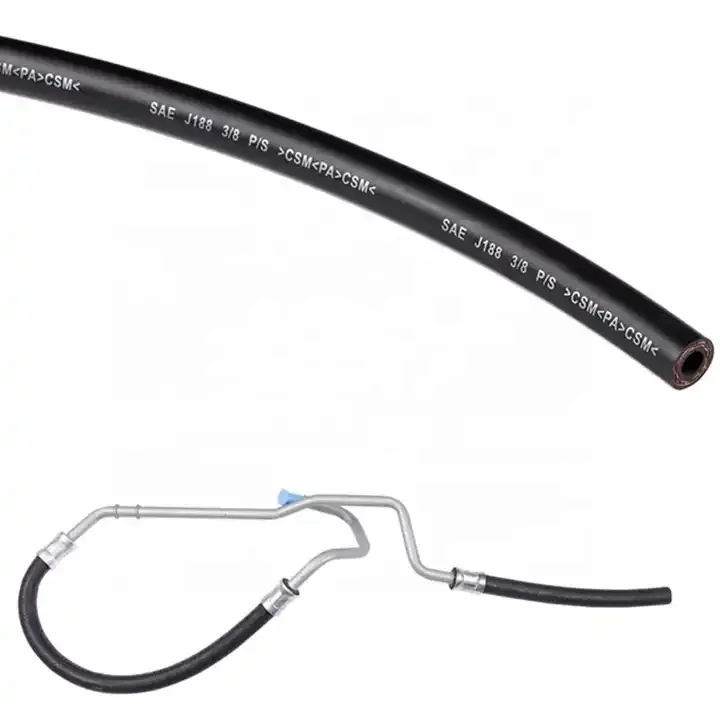

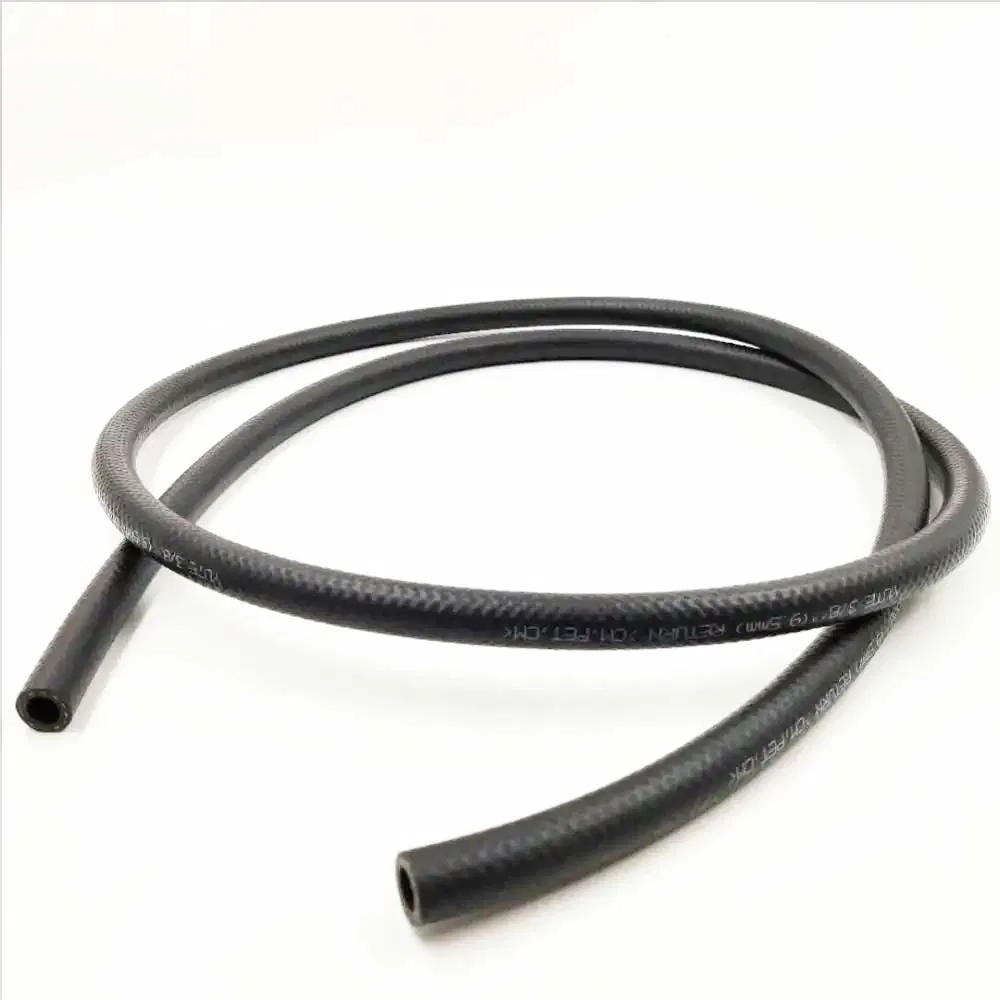

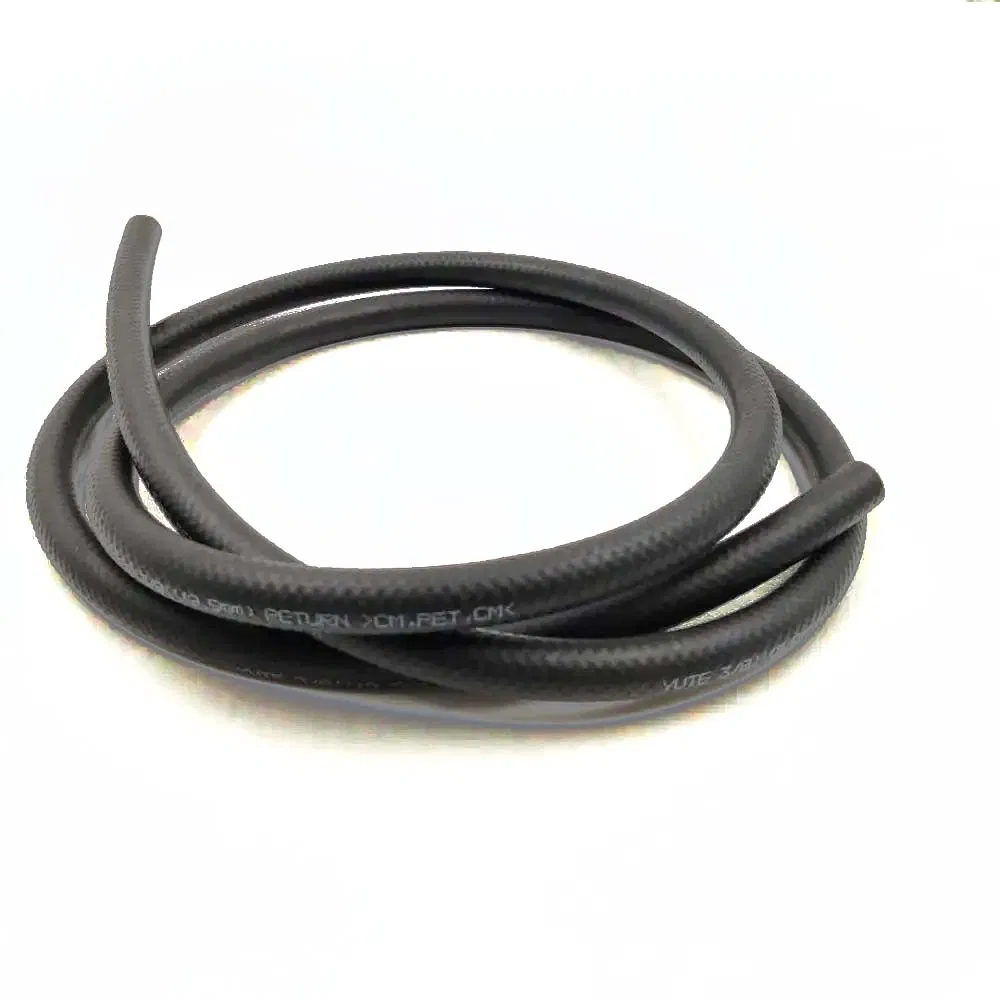

SAE J189 Standard Car Vehicle Truck Low Pressure High Tensile Performance NBR CSM Rubber Smooth Surface Cloth Wrapped Flexible Power Steering Return Oil Pipe Hose
Power steering hoses are always in pairs - high pressure and low pressure. One transfers power steering liquid from the pump to the mechanism, while the other transfers liquid back to the pump. Both hoses work together to make the steering system operate.
Low pressure power steering hose is especially designed for low operating pressure up to 175 psi. The inside tube is NBR, and the outside cover is CSM, which has excellent resistance to ozone, sunlight, heat, and anti-aging properties. Polyester spiral reinforcement gives the hose better capability of withstanding elevated temperatures up to 300°F.

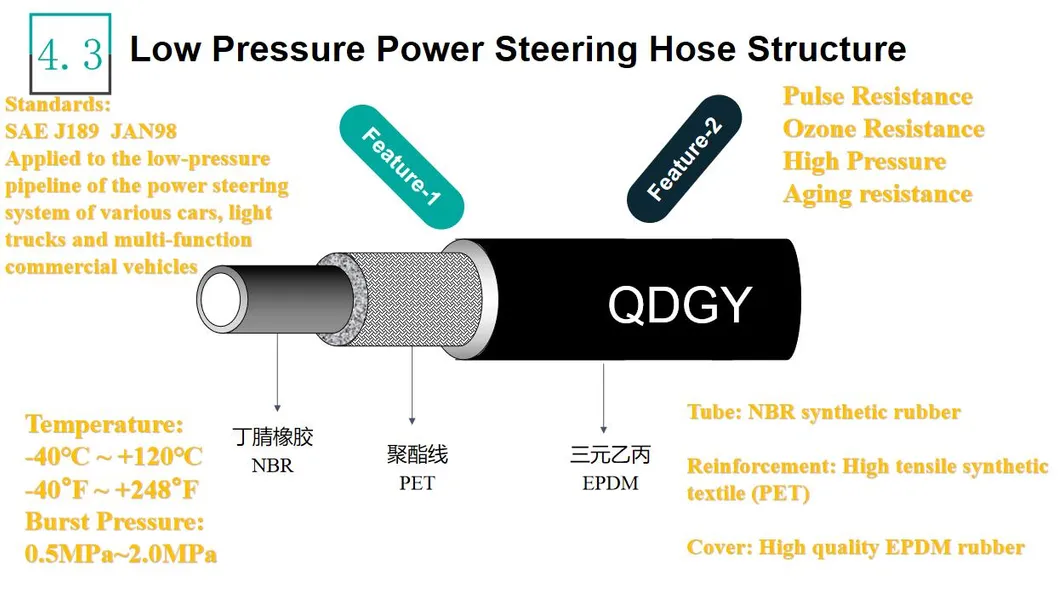

Structure: NBR + One Layer PET + CSM (Smooth or Cloth Surface)
Features: Low Pressure, Aging Resistance, Vibration Reduction, Pulse Resistance, Ozone Resistance.
| Property | Specification |
|---|---|
| Temperature Range | -40ºC ~ +135ºC |
| Inside Rubber | NBR / CSM |
| Reinforcement | PA / PET |
| Outside Rubber | CSM |
| Surface Finish | Rubber Smooth or Cloth |
| Standard | SAE J189 / JAN98 |

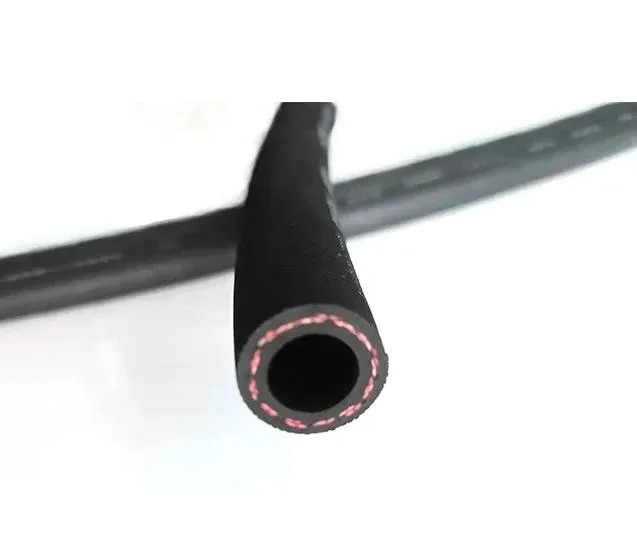

| Specification | I.D (MM) | O.D (MM) | Concentricity (MM) | Burst Pressure (Mpa) |
|---|---|---|---|---|
| 9.5 x 17.0 | 9.5±0.2 | 17.0±0.3 | <0.56 | 0.5~2.0 |
| 13.0 x 22.0 | 13.0±0.2 | 22.0±0.4 | <0.76 | 0.5~2.0 |
| 16.0 x 24.0 | 16.0±0.4 | 24.0±0.5 | <0.76 | 0.5~2.0 |

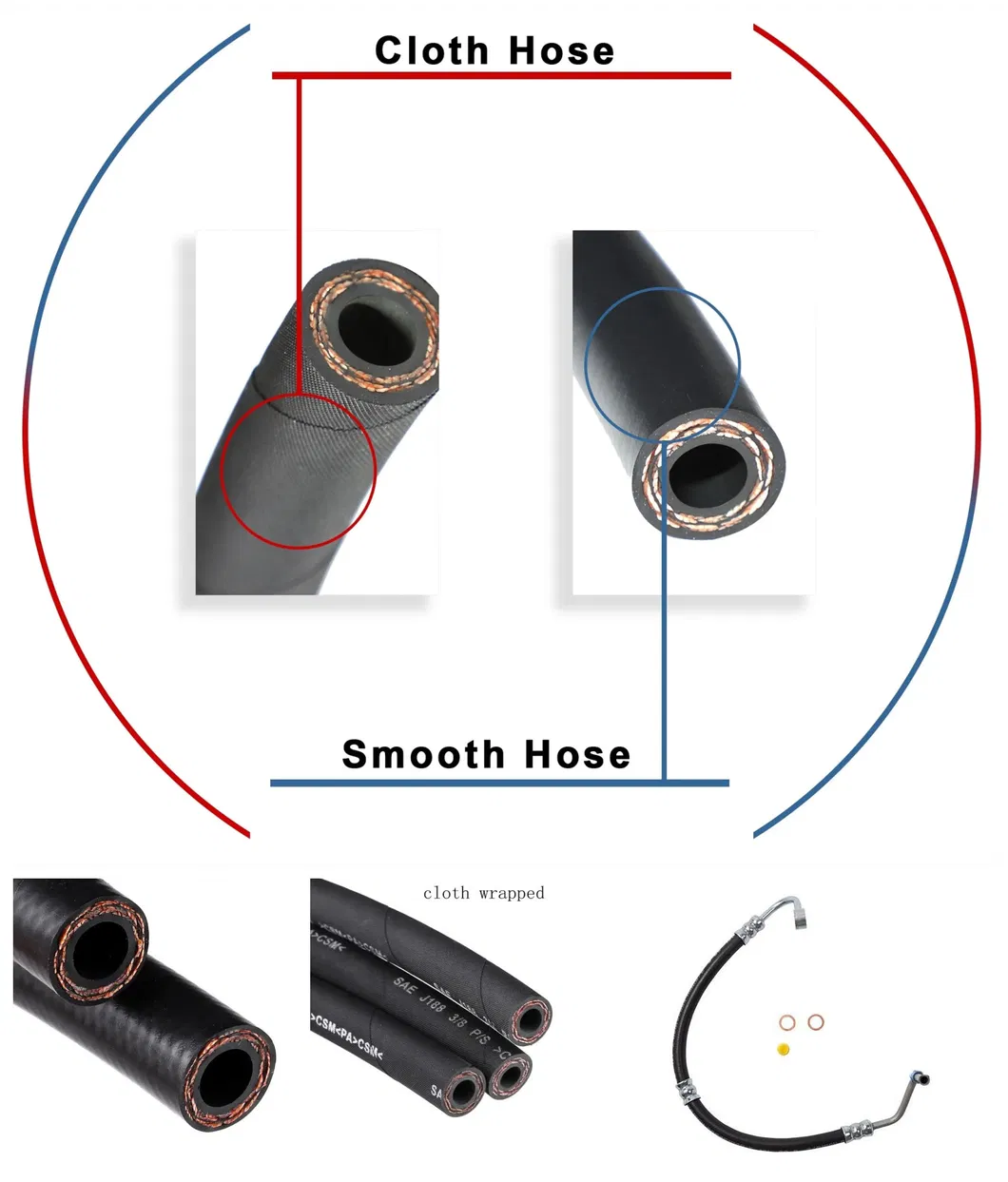

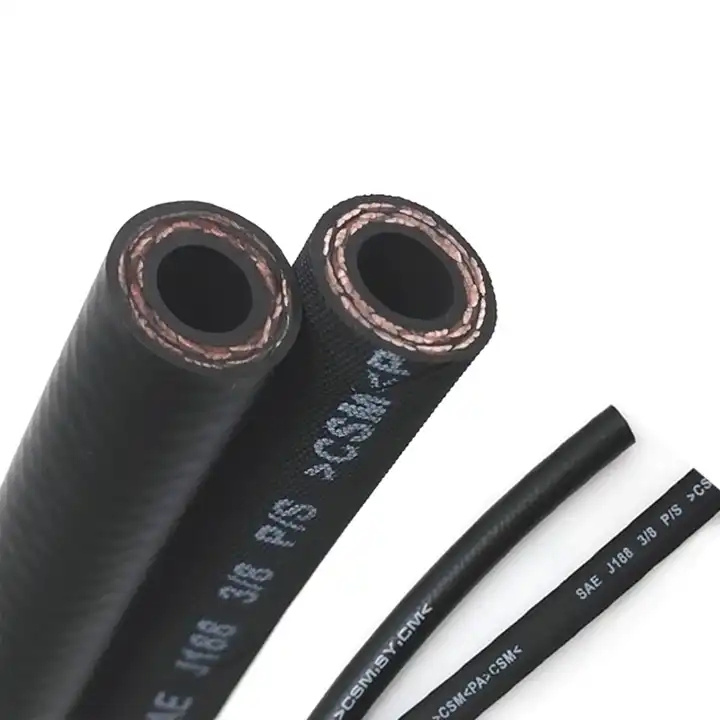

Available in two surface types: Cloth Surface and Smooth Surface. The CSM cover provides exceptional heat and weather resistance against high-voltage pulses.
Products are typically packed in individual cartons or rolls. Standard lead time is approximately 25 days for orders up to 10,000 meters.

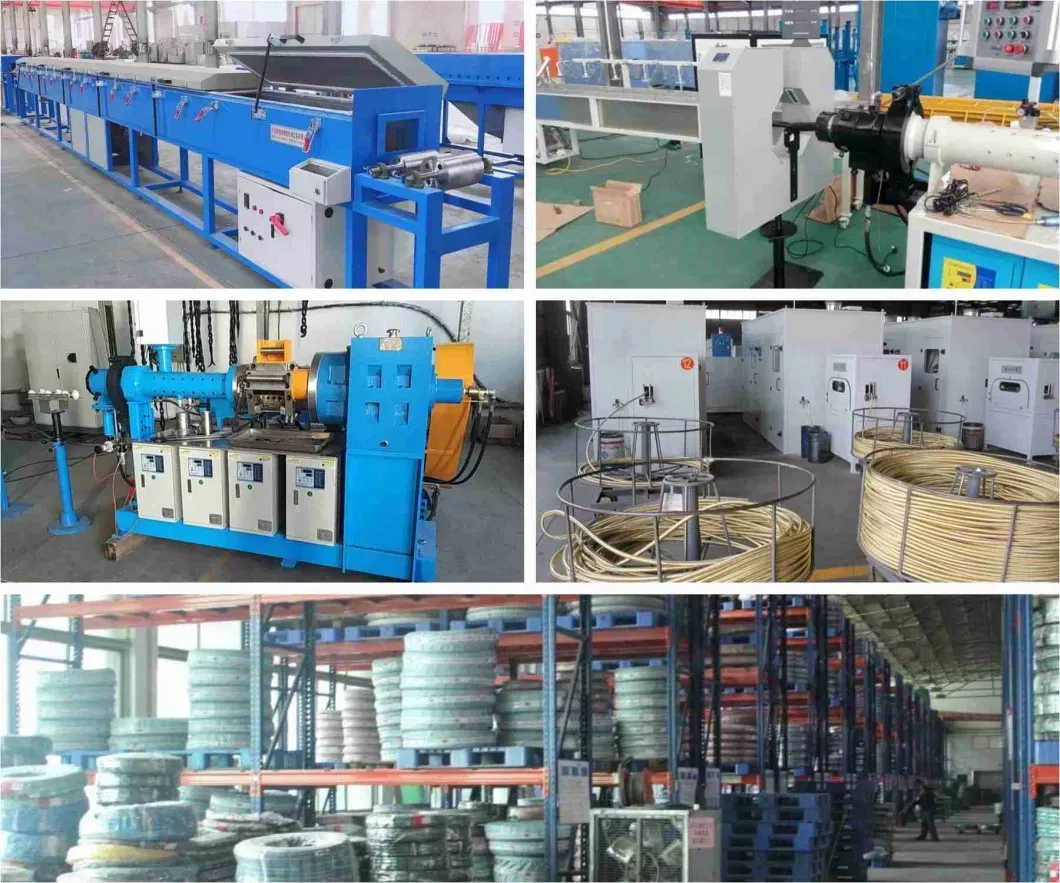

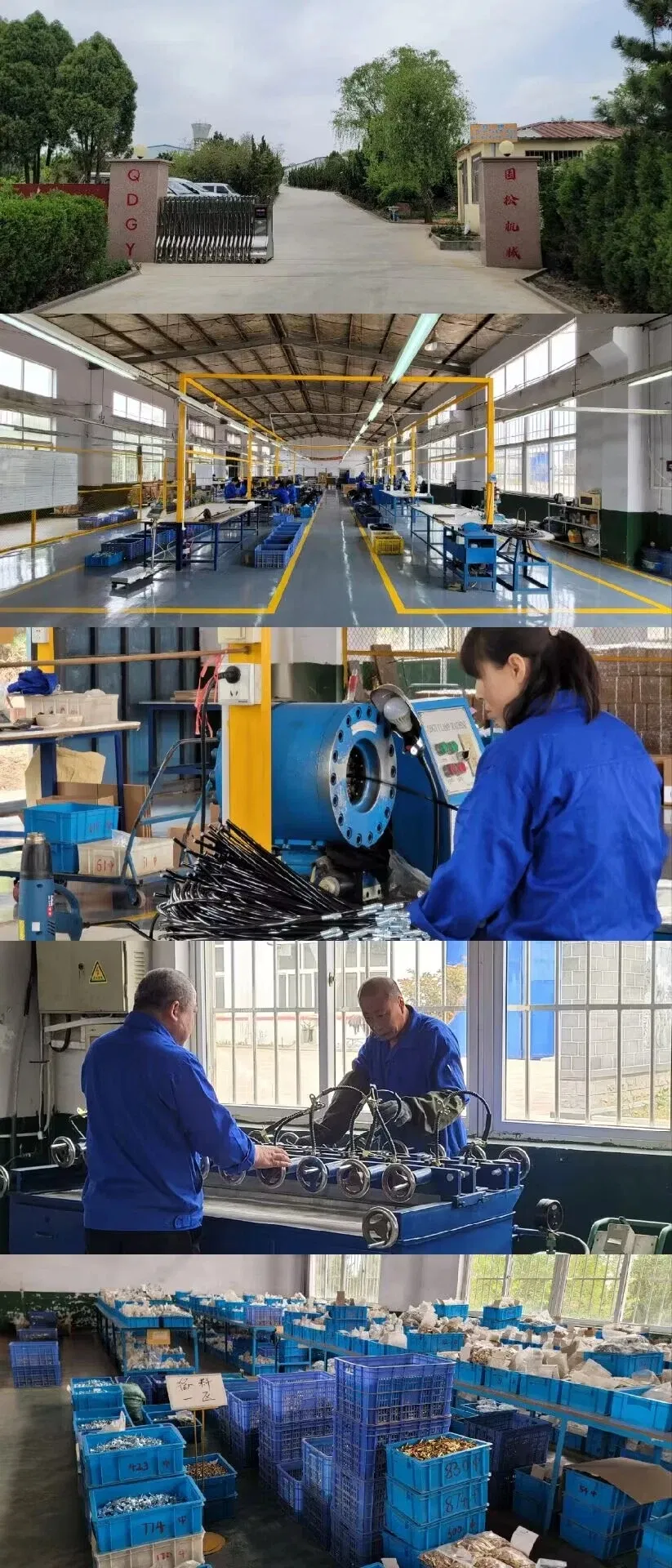

Founded in 1998, our facilities cover approximately 6,000 square meters with over 300 dedicated staff members. We specialize in the production of brake hoses, power steering assemblies, and varied fittings for the global automotive and motorcycle industries. With products exported to over 56 countries, we maintain high standards for both OEM and aftermarket requirements.
