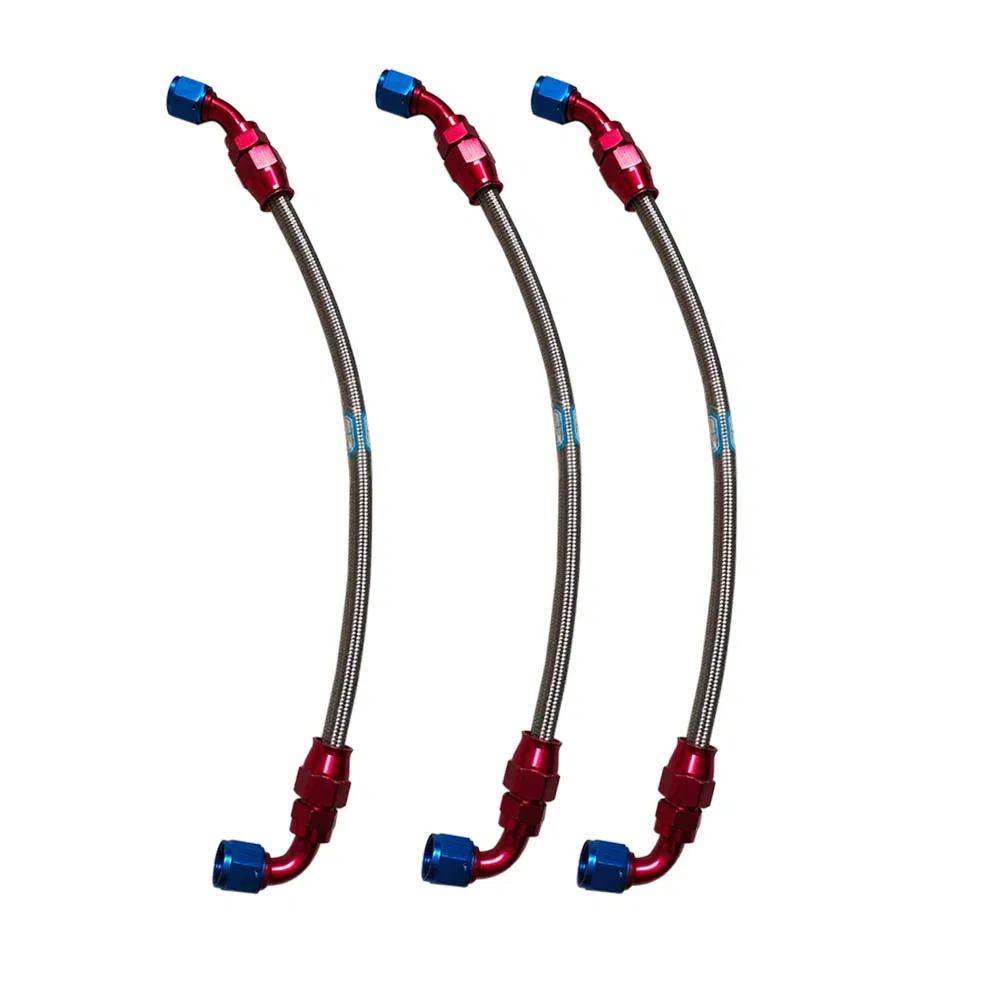

Steel Braided Fuel Oil Hose an PTFE Core Engine Oil Cooler Hose

1 / 5

Steel Braided Fuel Oil Hose an PTFE Core Engine Oil Cooler Hose

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.:assembly ptfe hose

Tensile Strength:20~45 MPa

Working Temp:-70c~+260 Celsius Degree

Braid:304 Stainless Steel

Advantage 1:More Flexible Than Common Corrugated Hose

Advantage 2:Less Resistance

Advantage 3:Less Residue Fluid

Advantage 4:Easy to Clean

Advantage 5:Non-Stick, Non-Toxic

MOQ:50 Meters

HS Code:391732000

Production Capacity:100000/Month

Packaging & Delivery

Package Size:45.00cm * 45.00cm * 15.00cm

Package Gross Weight:7.000kg

Transport Package:Plastic Bag+Pallet

Product Description

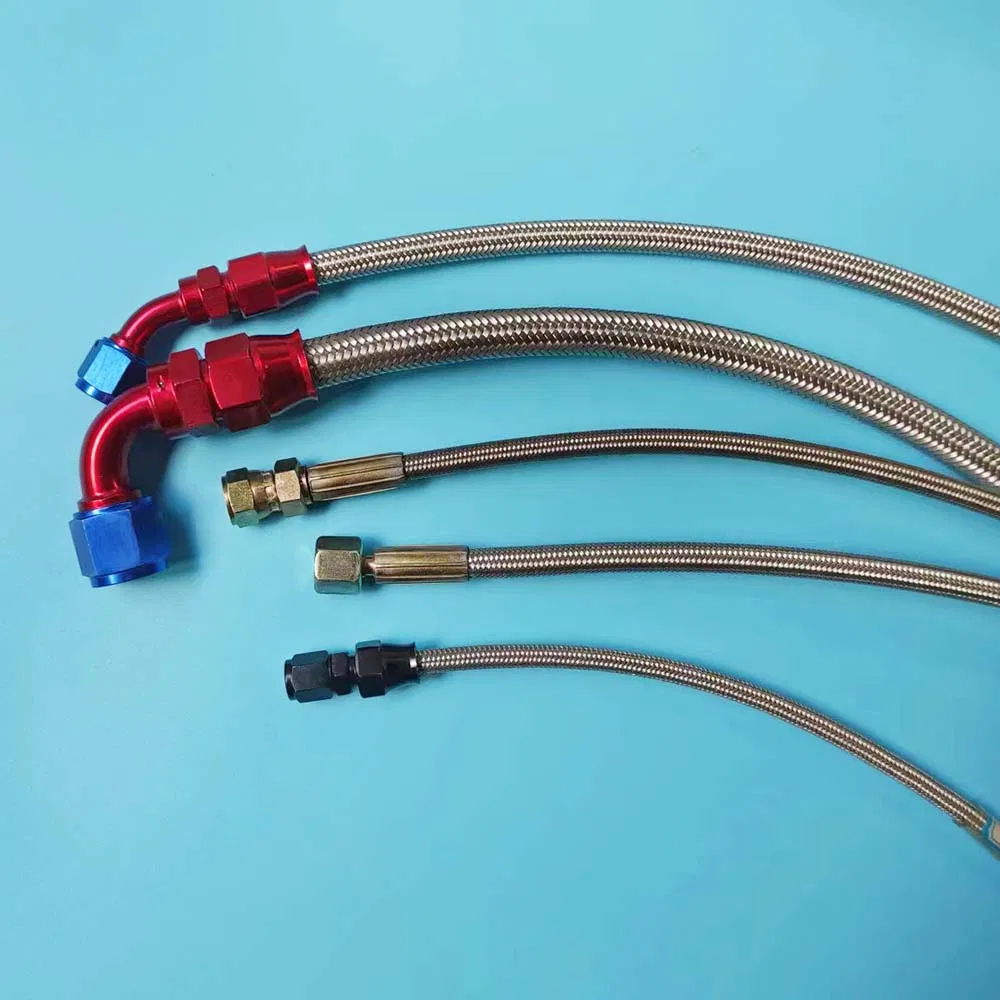

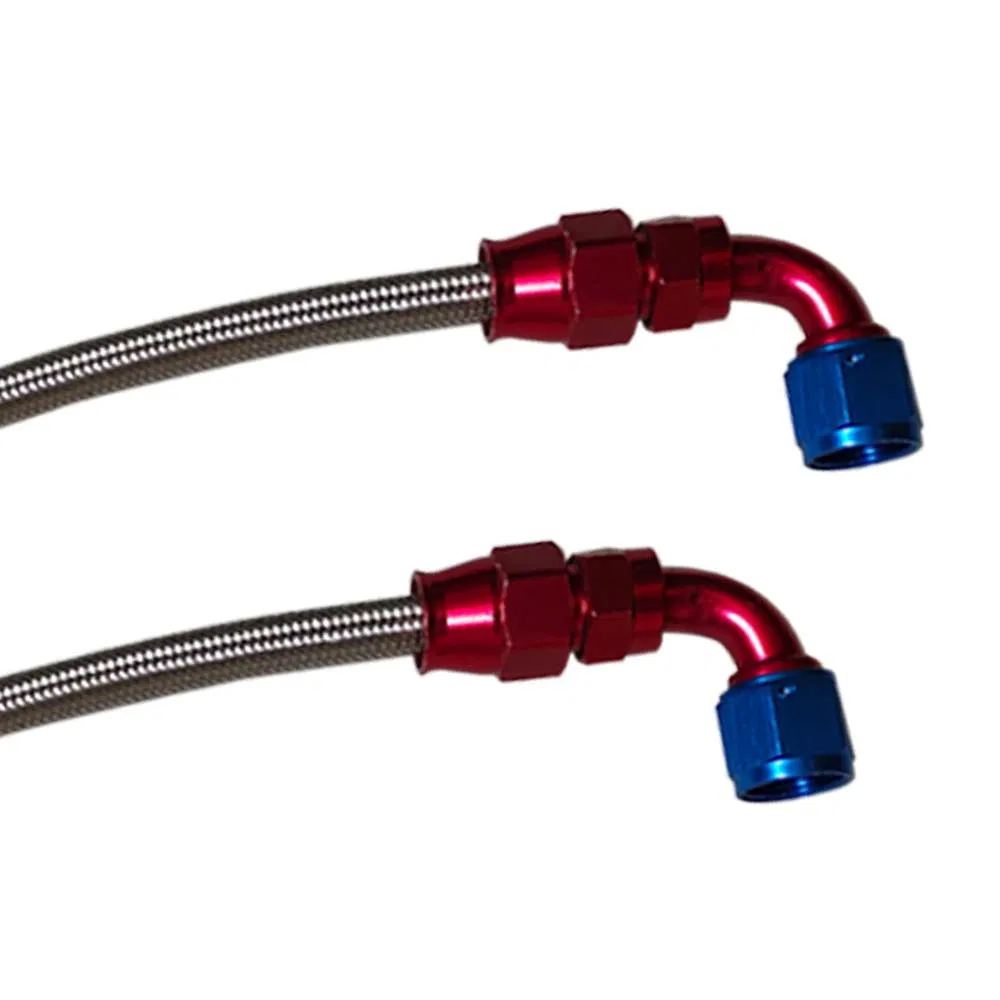

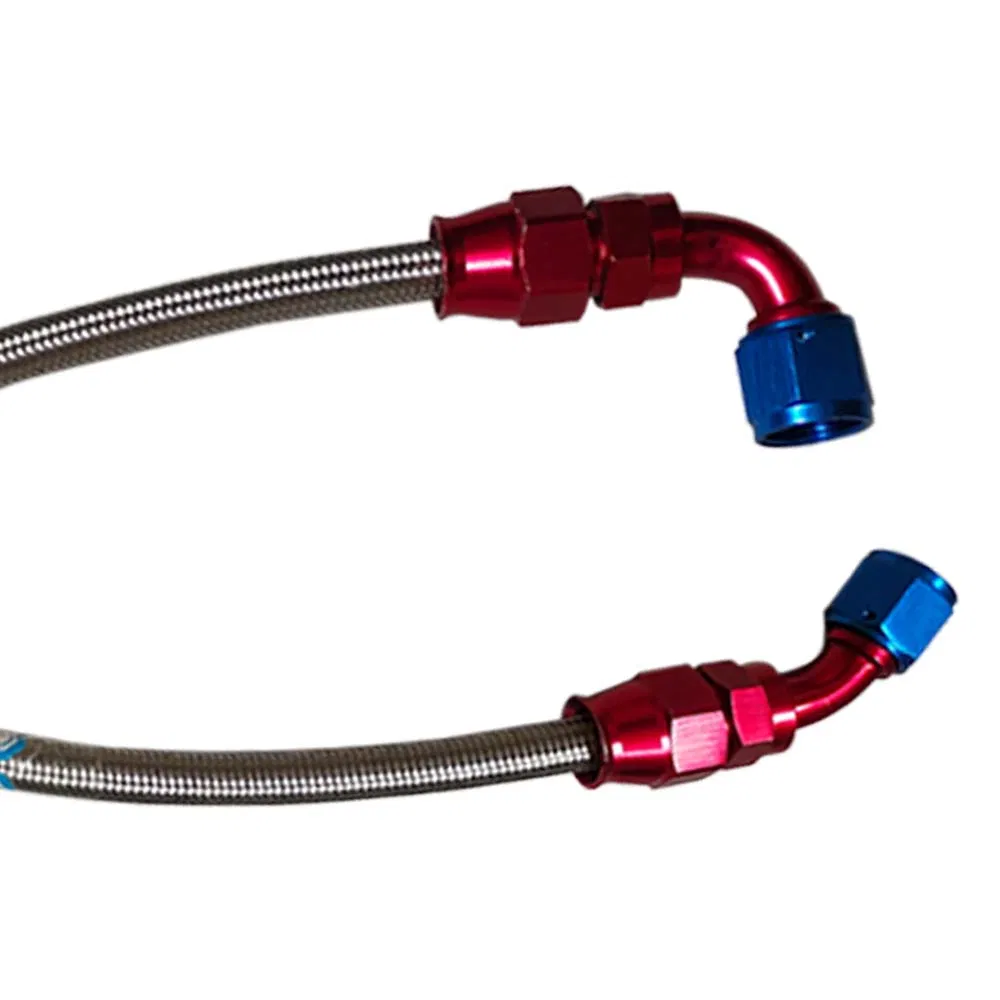

Assembly PTFE Stainless Steel Braided Hose for Oil Cooler.

We provide different kinds of hoses according to your specific industrial needs.

💡 High Performance Features:

Ideal for dry sump or high vacuum applications.

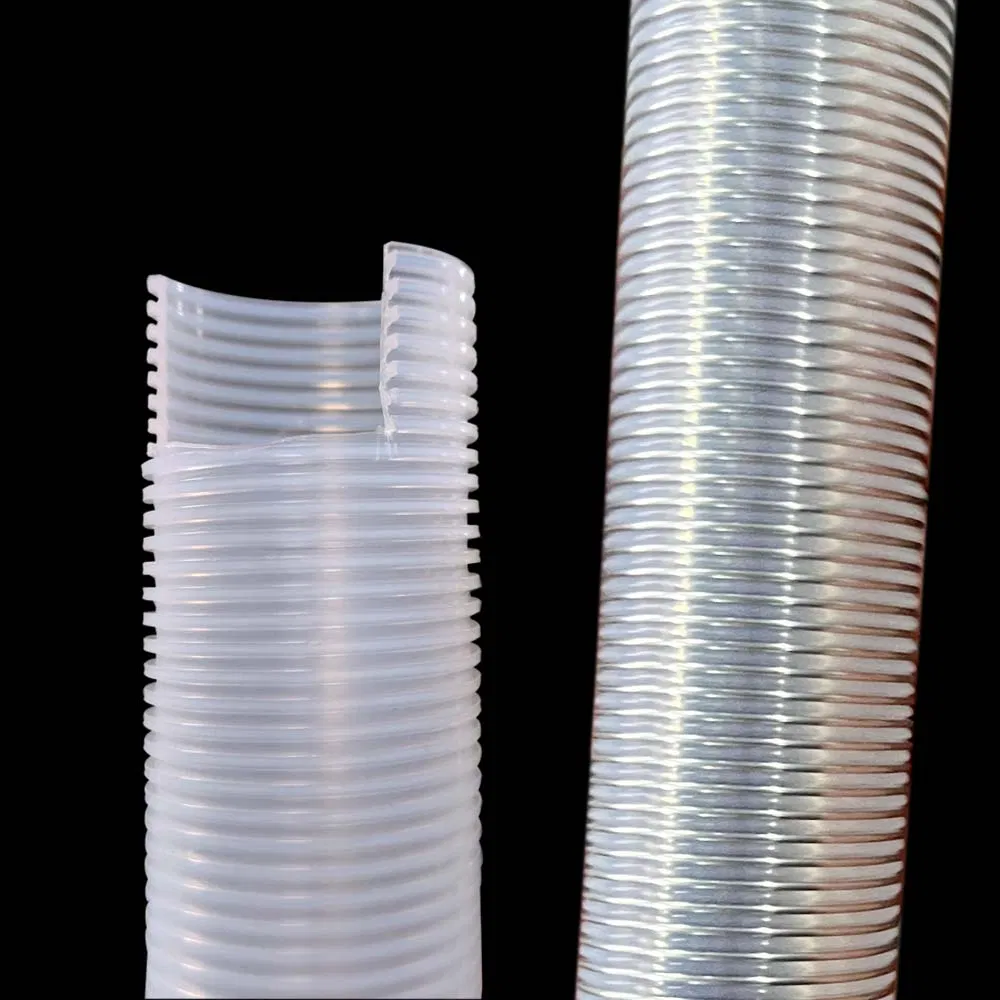

Smoothbore with convoluted exterior PTFE core enables small bend radiuses and high flow rates.
Convoluted exterior with spiral wire increases hoop strength to prevent hose sucking shut under high vacuum.

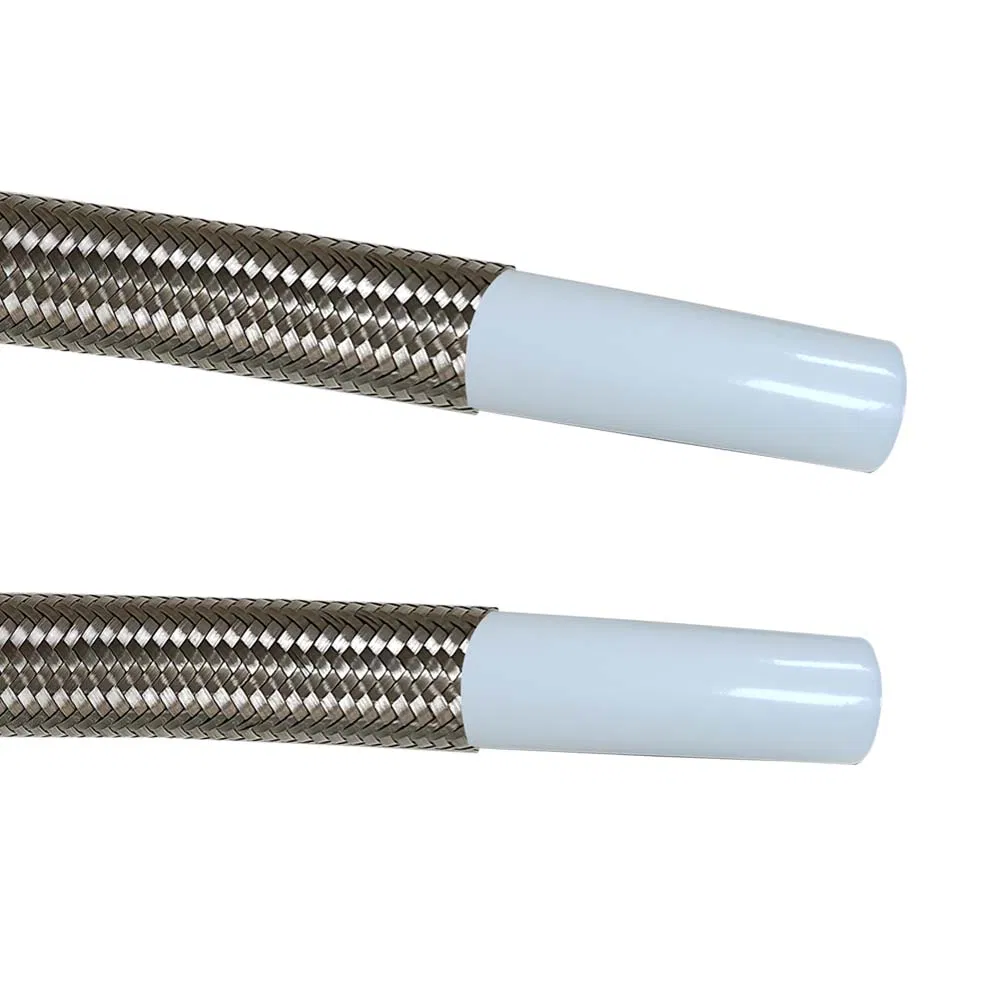

Additionally, we offer conductive PTFE smooth core for antistatic applications and common smooth PTFE bore options for budget-sensitive projects.

Technical Data

Technical specifications of high performance PTFE Hose (Smooth inner, corrugated outer, spiral steel wire reinforced, SS304 braid).

Inner Diameter (inches)	Working Pressure (bar)	Burst Pressure (bar)	Bend Radius (mm)
1/4''	140	420	/
5/16''	133	400	/
3/8''	127	380	25
1/2''	110	330	28
5/8''	73	250	50
3/4''	67	200	63
1''	50	150	75

Certifications

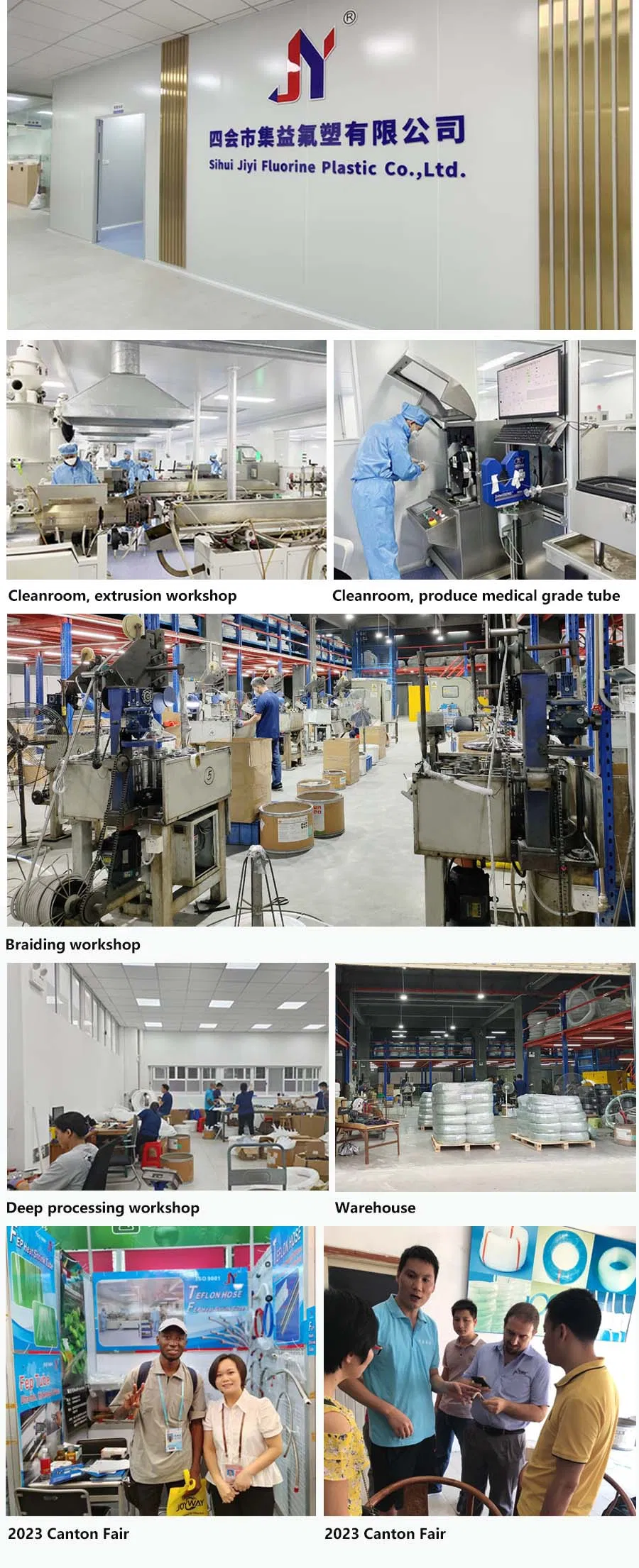

Manufacturing Capabilities

Professional manufacturer of PTFE hose, FEP hose, and PFA hose. Equipped with cleanrooms for the production of food and medical-grade tubing. Quality management systems certified to ISO 9001 and ISO 13485.

Frequently Asked Questions

What is the operating temperature range for these PTFE hoses?

The hoses are designed to operate effectively in temperatures ranging from -70°C to +260°C.

What makes the high-performance PTFE hose ideal for vacuum applications?

It features a spiral steel wire reinforcement within the convoluted exterior, which increases hoop strength and prevents the hose from collapsing or sucking shut under high vacuum.

Are there options for antistatic requirements?

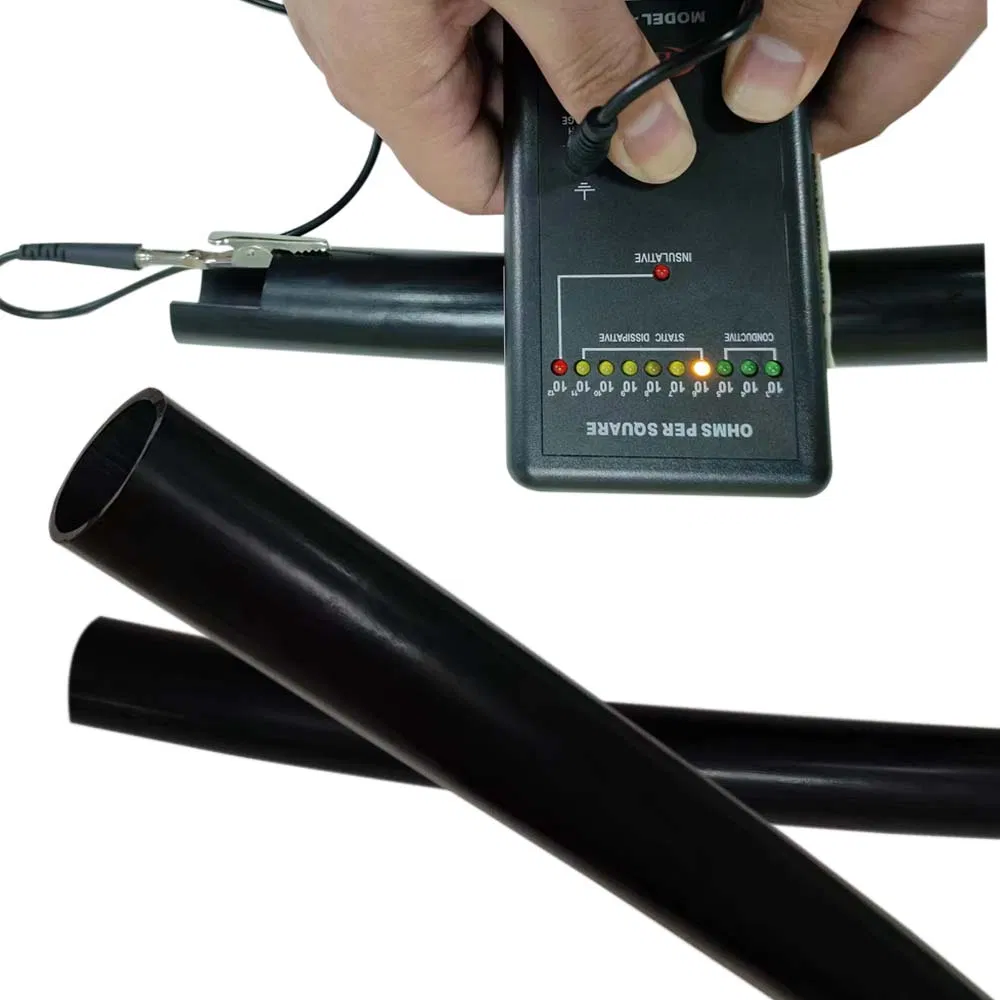

Yes, we provide conductive PTFE smooth core options specifically designed for antistatic applications.

What are the main benefits of the SS304 braid?

The 304 stainless steel braid provides excellent durability, high pressure resistance, and protection against external wear and corrosion.

How flexible is the corrugated exterior PTFE hose compared to standard hoses?

The convoluted exterior allows for a much smaller bend radius, making it significantly more flexible and easier to install in tight spaces than common corrugated hoses.

Is this hose easy to clean and maintain?

Absolutely. The non-stick and non-toxic properties of PTFE result in less residue fluid and resistance, making the hose very easy to clean.
