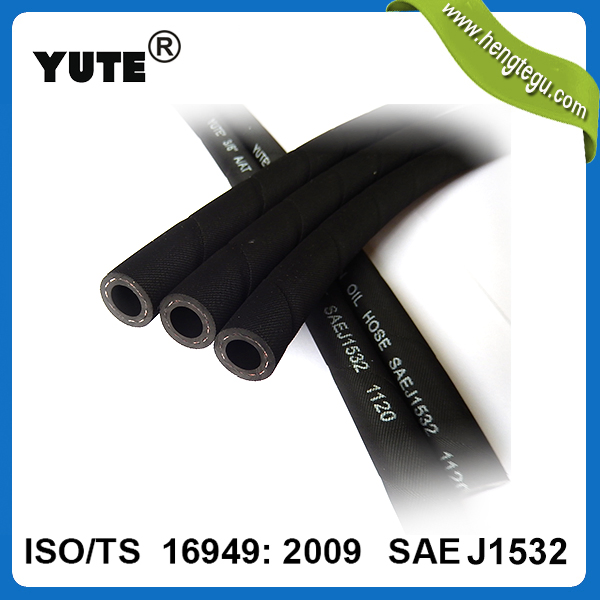

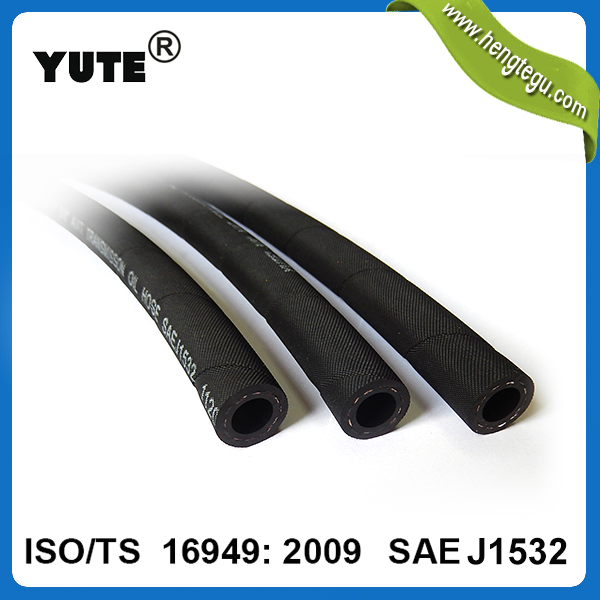

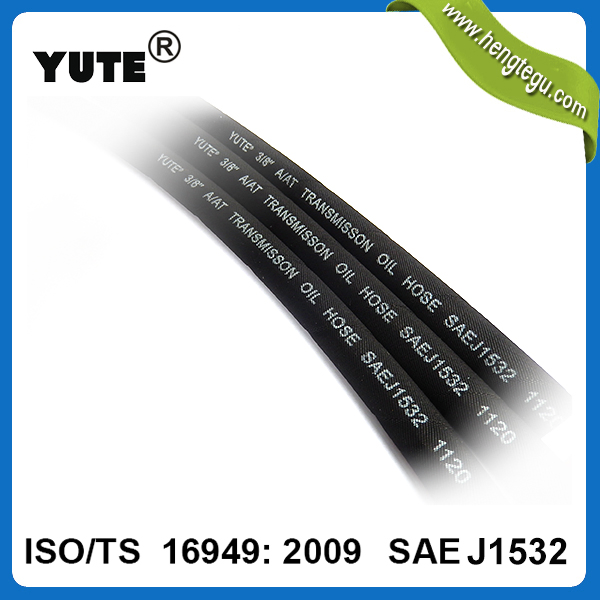

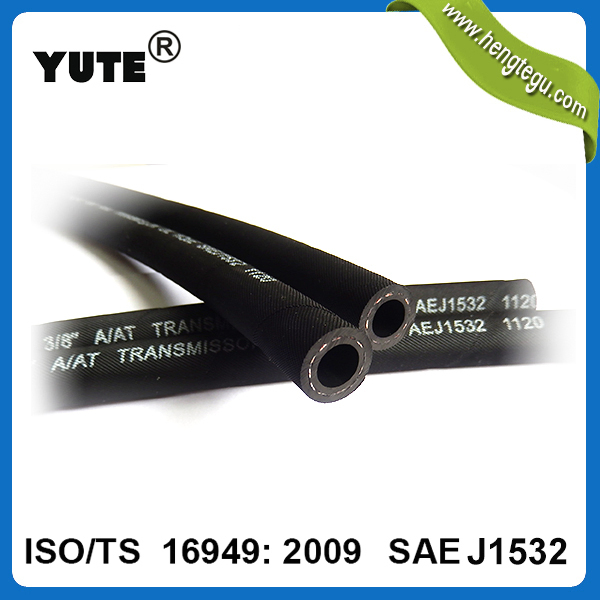

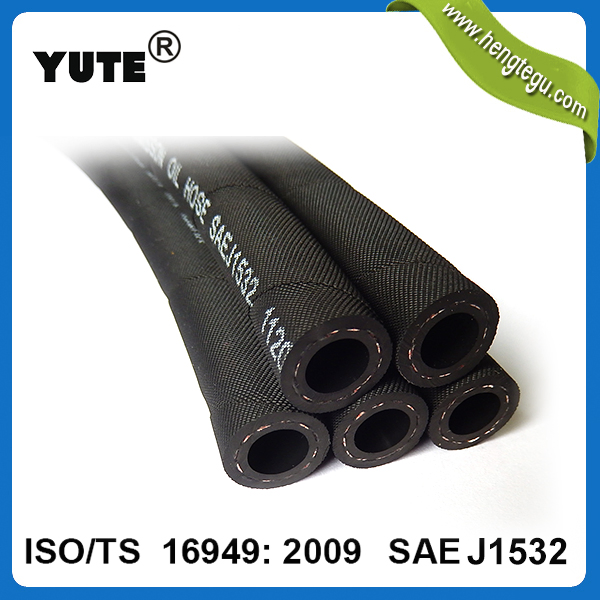

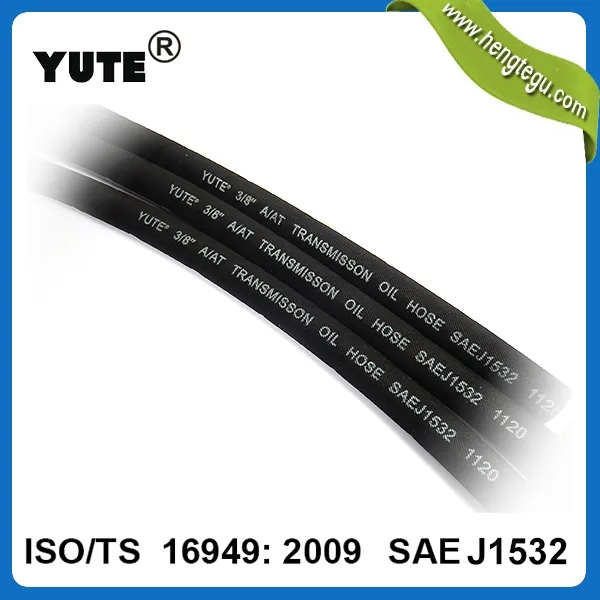

1/2'' 12.5mm CPE/AEM Black Saej1532 Transmission Oil Cooler Hose

📋

Basic Specifications

Model NO.:662148

Color:Black

Standard:SAE J1532

Cover:Aging Resistant Synthetic Rubber

Temperature Range:-40 to 125 Degrees Celsius

Working Pressure:145psi

Specification:CPE

HS Code:4009310000

Production Capacity:30000m/Day

⚙️

Product Overview

1/2'' SAE J1532 CPE/AEM Black Transmission Oil Cooler Hose

APPLICATIONS

Designed specifically for automatic transmission cooling hose systems, providing reliable performance under pressure.

CONSTRUCTION

Tube: Rubber formulation with excellent transmission fluid resistance.
Reinforcement: High tensile polyester fiber braided for enhanced strength.
Cover: Aging resistant synthetic rubber for long-term durability.
Color Options: Available in Black or Gray.
Temperature Resilience: Stable performance from -40 ºF to +257 ºF (-40ºC to +125ºC).

Part Number	ID (IN)	ID (mm)	OD (IN)	OD (mm)	Working Pressure (PSI)	Burst Pressure (PSI)	Bending Radius (IN)	Length (FT)	Length (m)	Weight (lbs/ft)	Weight (g/m)
661423	5/16	7.9	35/64	14	145	595	3	25	7.62	1.02	142
661726	3/8	9.5	81/128	16	145	595	4	25	7.62	1.26	176
662148	1/2	12.7	25/32	20	145	595	5	25	7.62	1.82	253

📦

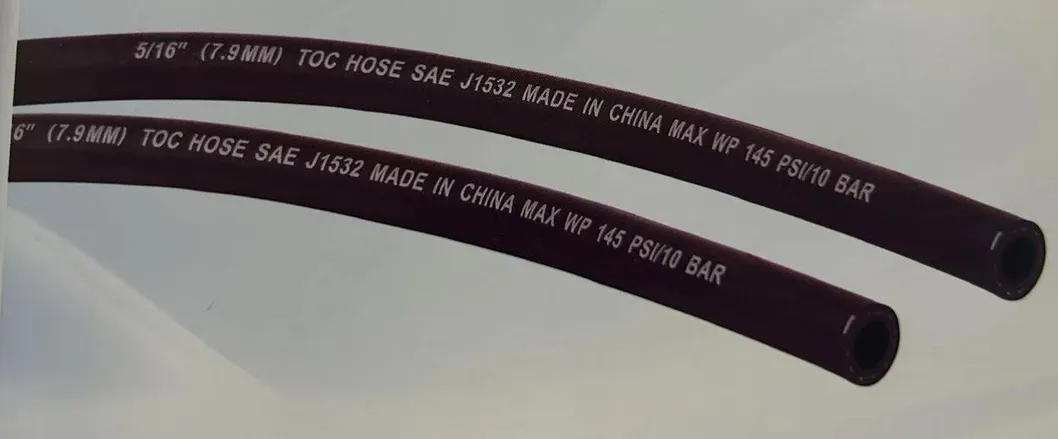

Packing & Marking

❓

Frequently Asked Questions

What is the main application for this hose?

This hose is specifically designed for automatic transmission cooling systems in vehicles.

What temperature range can this oil cooler hose withstand?

It is rated for temperatures ranging from -40ºC to +125ºC (-40 ºF to +257 ºF).

Which standard does this product comply with?

The hose meets the SAE J1532 standard for transmission oil cooler hoses.

What materials are used in the construction?

It features a CPE/AEM tube for fluid resistance, high tensile polyester fiber braiding for reinforcement, and an aging-resistant synthetic rubber cover.

What is the maximum working pressure?

The maximum working pressure for this hose series is 145 PSI, with a burst pressure of 595 PSI.

Are there different sizes available?

Yes, we provide multiple sizes including 5/16", 3/8", and 1/2" internal diameters to suit various system requirements.
