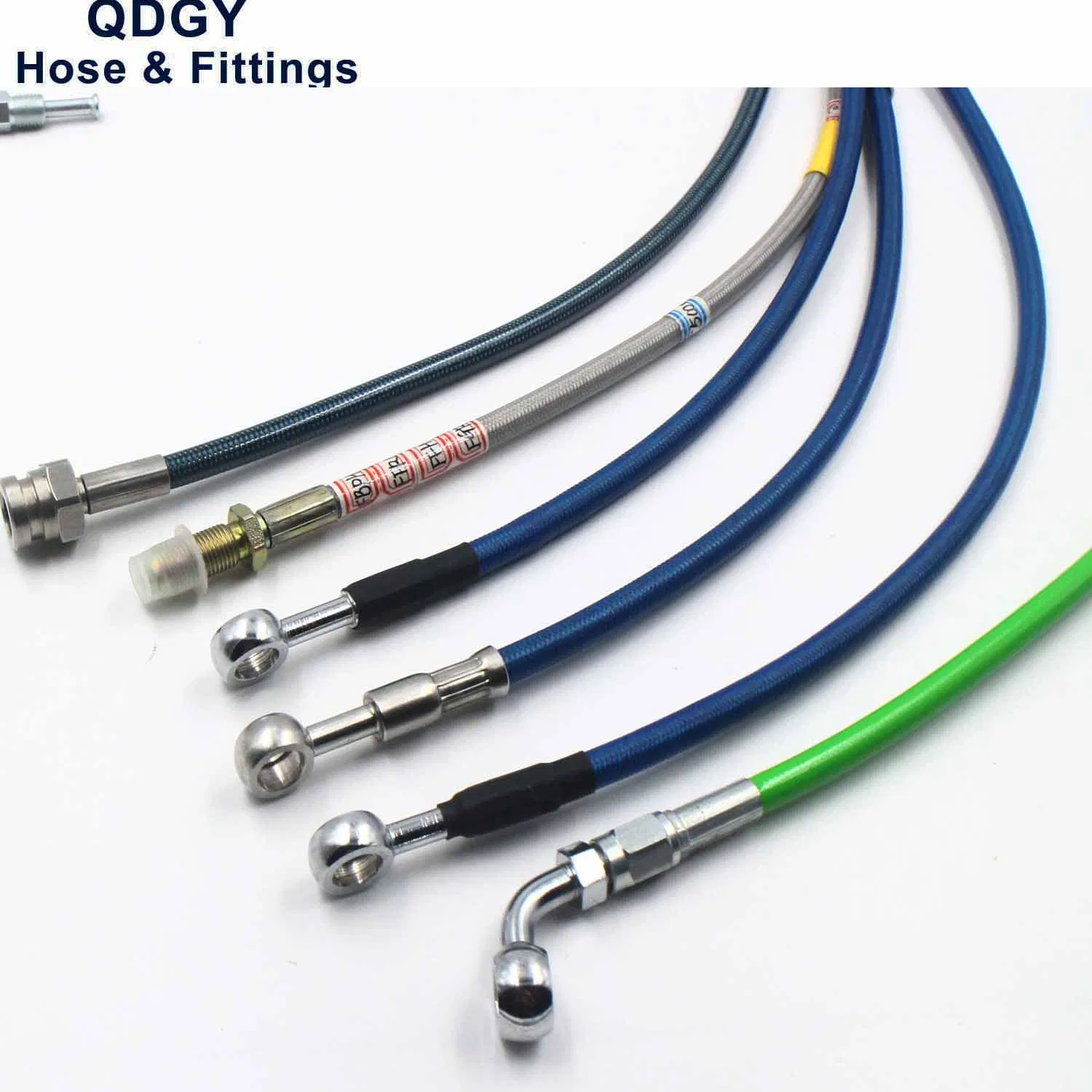

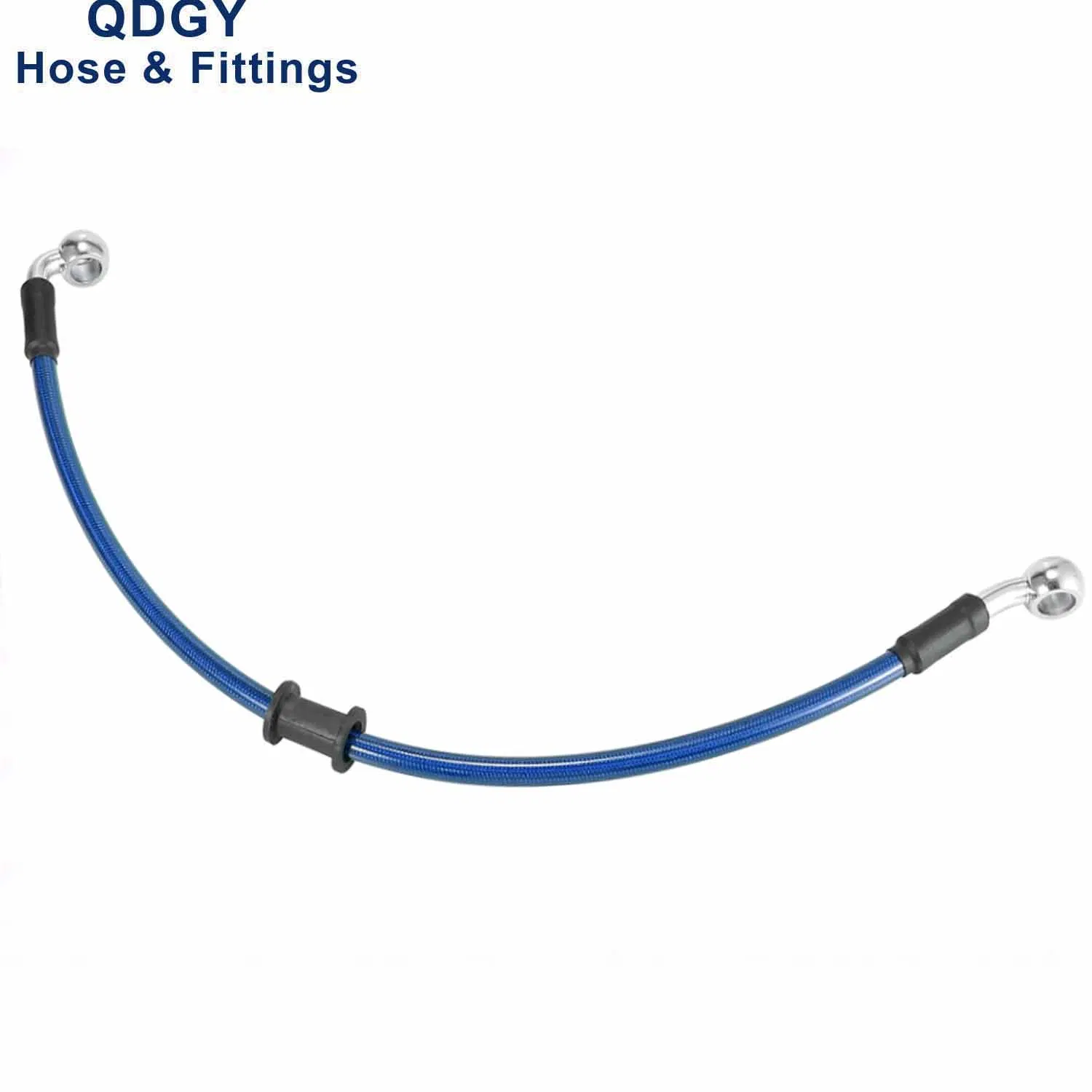

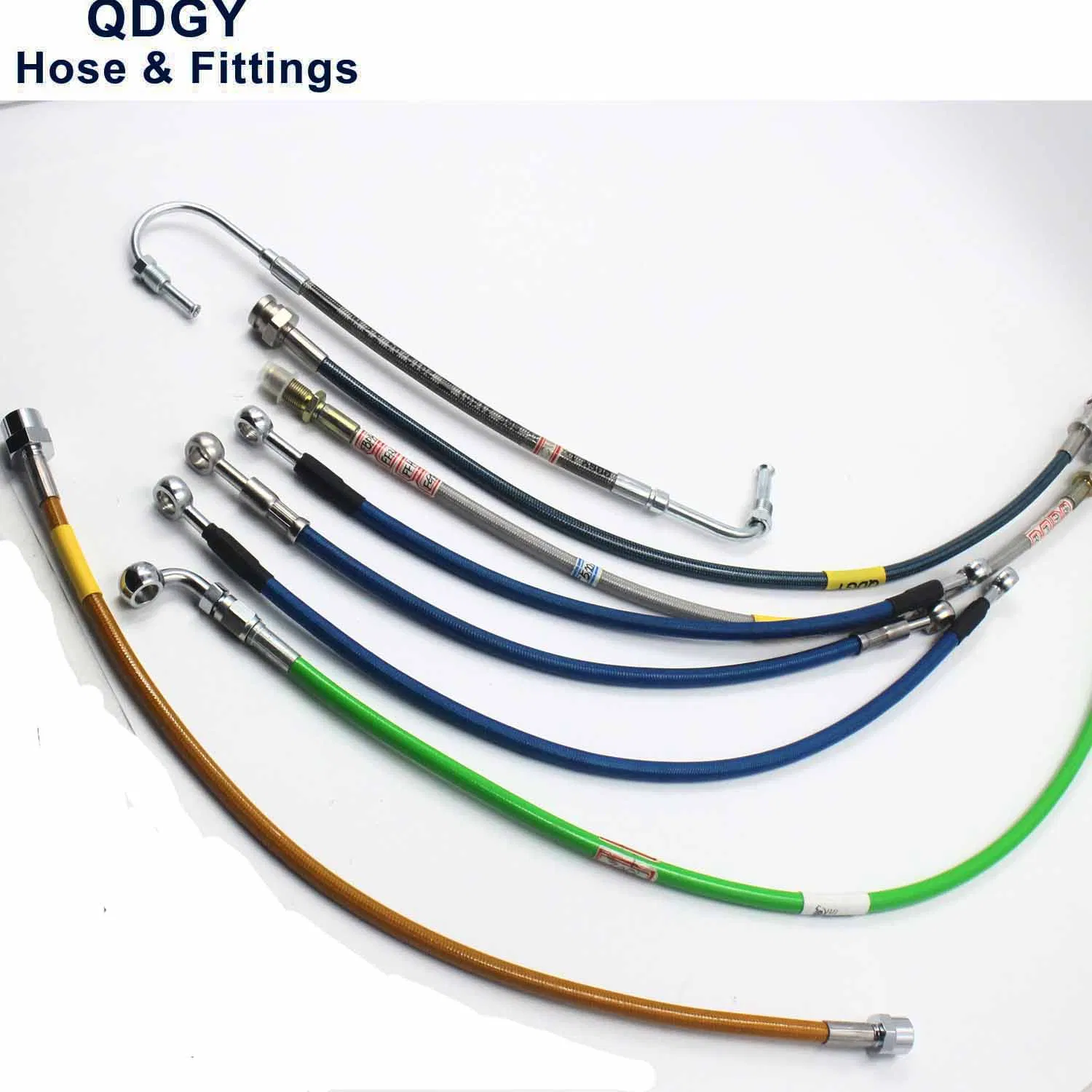

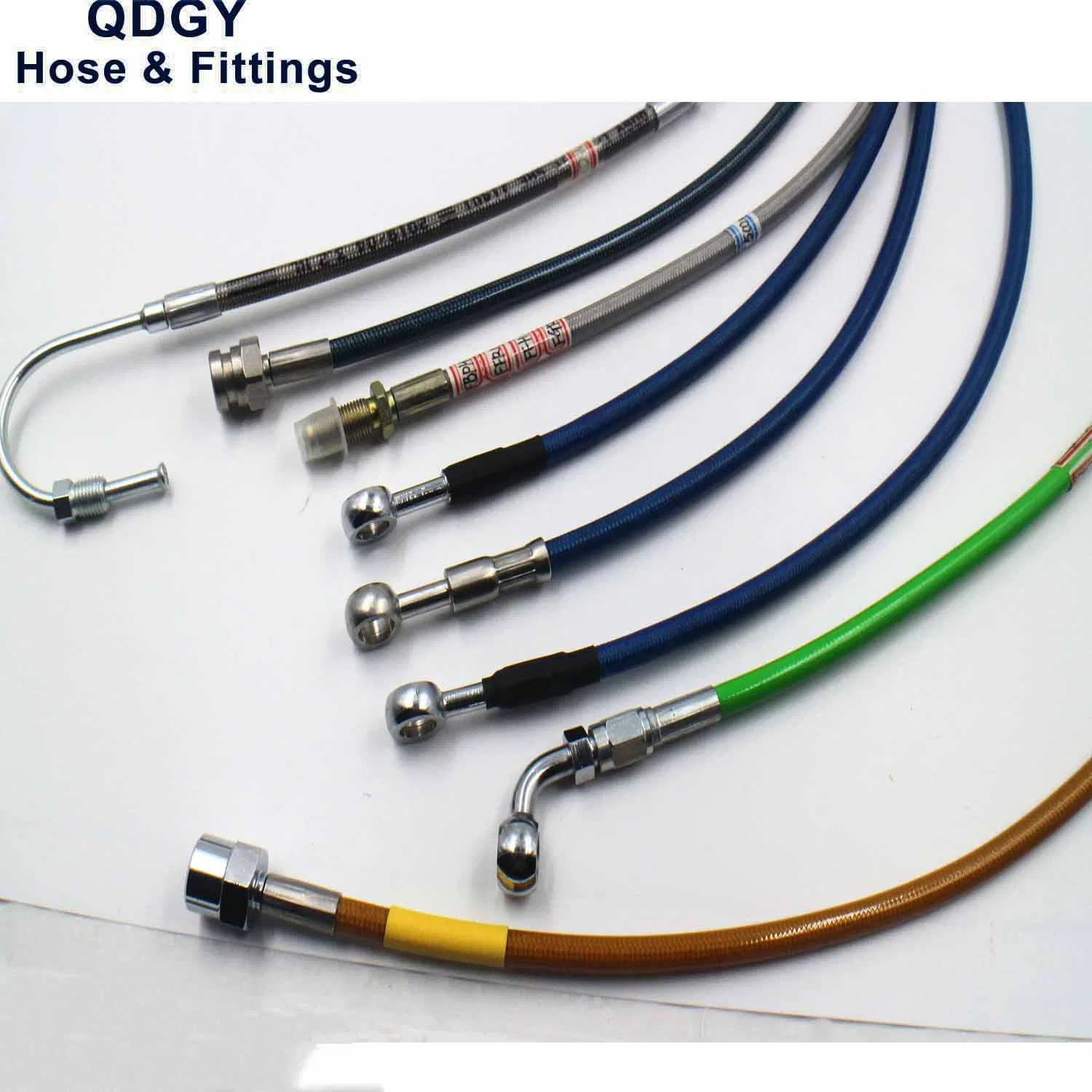

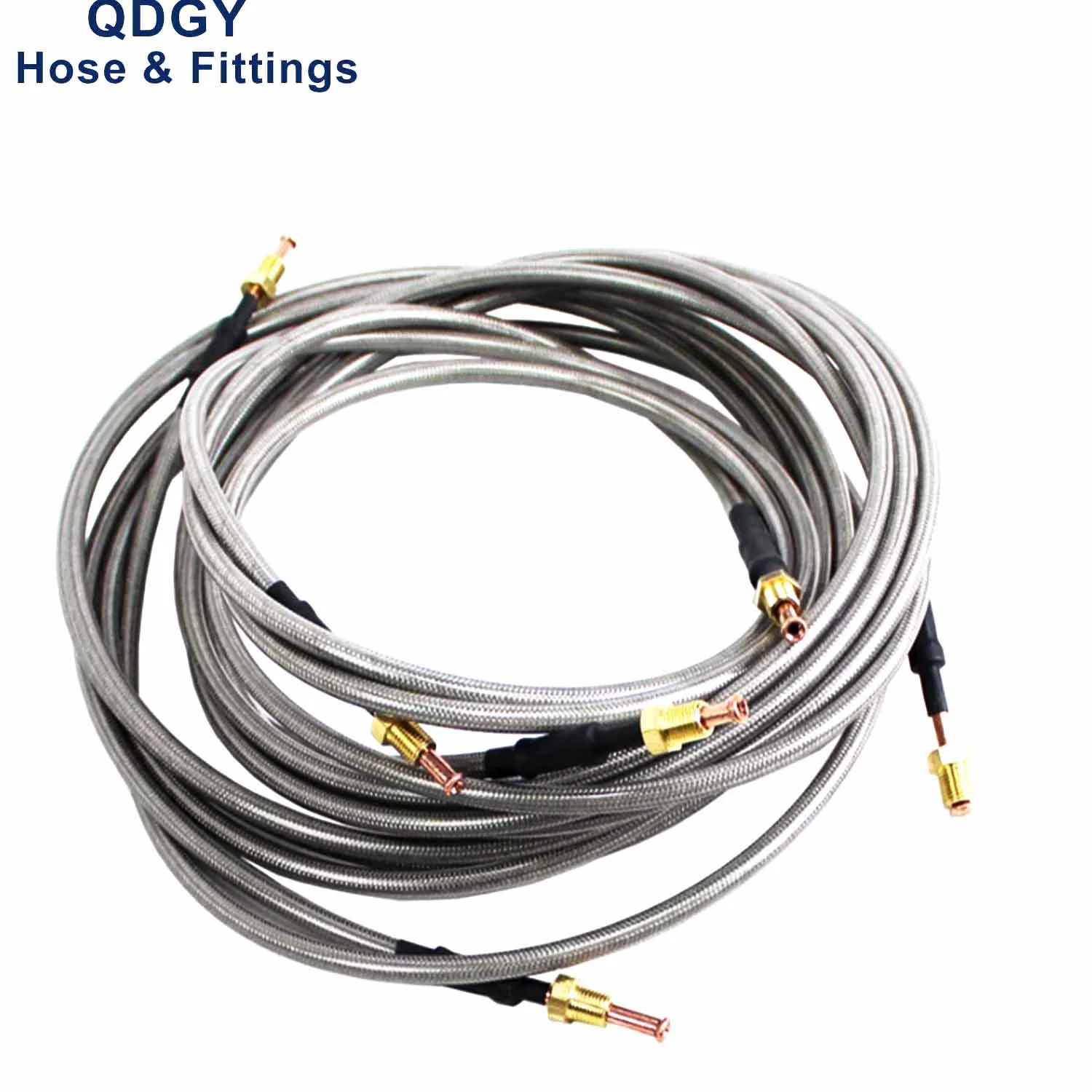

Universal Dirt Bike Racing ATV UTV An3 Motorcycle Stainless Steel Braided Brake Hose Line Steel Brake Cable Hydraulic Clutch Banjo Oil Pipe Hose Assembly Line

1 / 5

Universal Dirt Bike Racing ATV UTV An3 Motorcycle Stainless Steel Braided Brake Hose Line Steel Brake Cable Hydraulic Clutch Banjo Oil Pipe Hose Assembly Line

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.Flexible stainless steel braided hose

TypeBrake Hose

MaterialSteel

PositionFront

ClassificationDisc

StandardDOT Fmvss106 SAE J1401

SizeAn3 An4 1/8 3/16

HS Code8708309990

Lead Time35-40 days

CertificationISO/IATF-16949, DOT, CE

★

Product Description

Universal Dirt Bike Racing ATV UTV AN3 Motorcycle Stainless Steel Braided Brake Hose Line. Features hydraulic clutch banjo oil pipe hose assembly compatible with all brake fluids and D.O.T. approved for street applications.

Key Performance: Each brake hose assembly is tested to 3,000 PSI to ensure maximum safety. Our hoses offer high temperature resistance, low expansion, and excellent durability against ozone and chemicals.

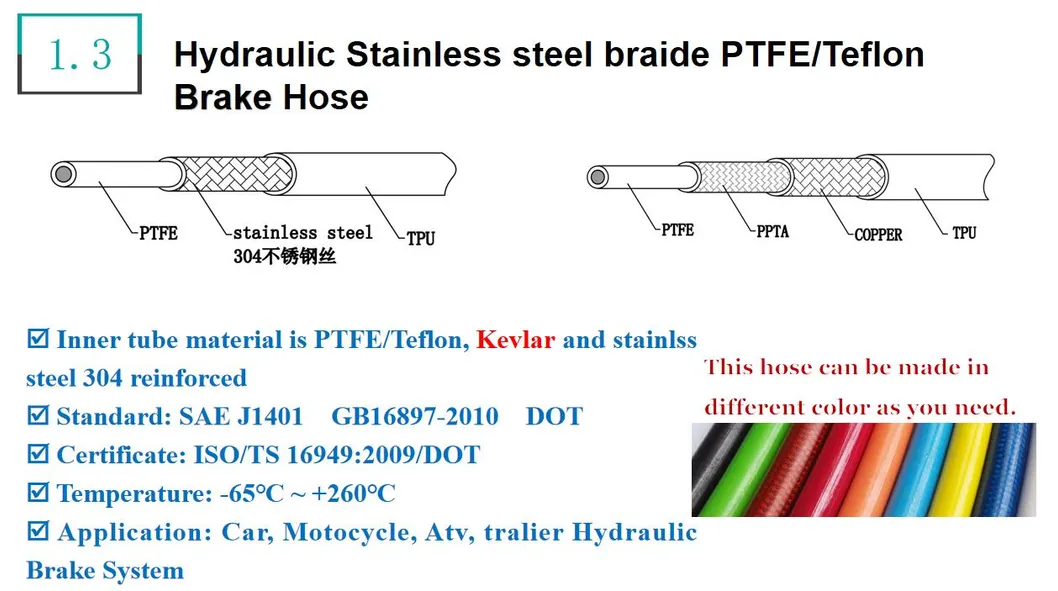

Layer	Material Description
Inner layer	PTFE Teflon Stainless steel braided brake hose
Enhancement layer	Stainless steel wire braid (AISI Steel 304 316)

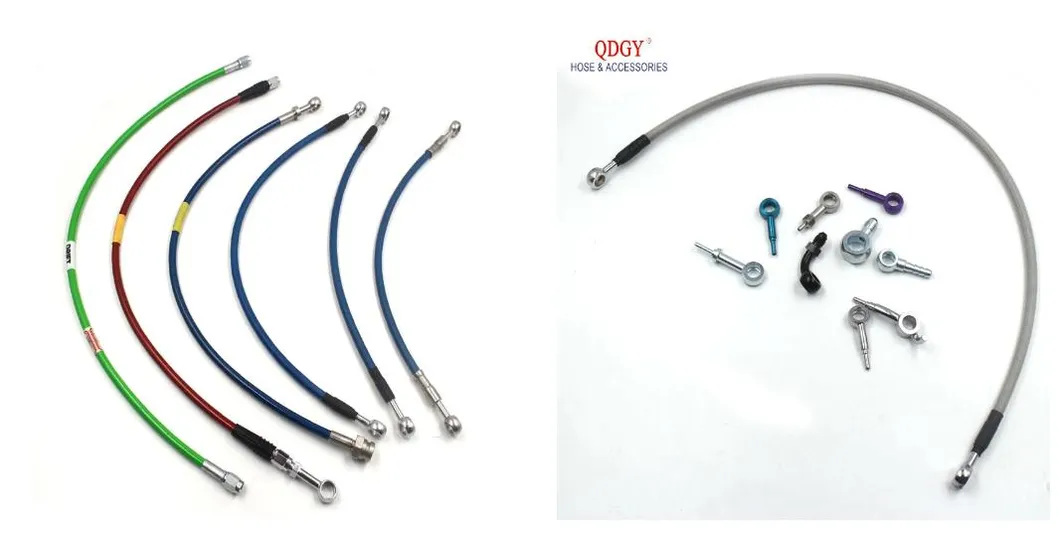

Outer layer	PVC, PU (Available in Black, Red, Blue, Yellow, Purple, Clear, Gray, Orange, etc.)
Temperature range	−65ºC ~ +260ºC

⚙

Technical Specifications

Spec Inch	I.D (MM)	O.D (MM)	Burst Pressure (PSI)
AN3 1/8	3.30±0.20	6.50±0.30	12000
AN3 1/8 (Thick)	3.30±0.20	7.50±0.30	12000
AN4 3/16	4.80±0.20	8.0±0.30	12000
AN6 21/64	8.13±0.2	11.0±0.3	10000

✔

Features & Applications

Meets FMVSS-106 and SAE J1401 specifications.
Pressure tested to 3000 psi (207 bar); Minimum burst pressure 7250 psi up to 12,000 psi.
Compatible with DOT3, DOT4, and DOT4+ brake fluids.
Widely used in Automotive, Bicycle, Motorcycle, Racing, and Power Steering systems.
Stainless steel wire cover adds strength and resists abrasion/corrosion.

⚒

Quality Assurance

Frequently Asked Questions

Where can these brake hoses be used?

They are designed for use in the braking systems of automobiles, motorcycles, trucks, ATVs, UTVs, and racing vehicles.

What are the common sizes available?

Common sizes include 1/8" (3.2mm) and 3/16" (4.8mm), though custom sizes can be produced based on specific requirements.

What fluids are compatible with these hoses?

Our PTFE lined hoses are compatible with all brake fluids including DOT3, DOT4, and DOT4+, as well as methanol, water, and oil.

What is the pressure rating of the hoses?

Every hose is tested to 3,000 PSI. The burst pressure can reach up to 12,000 PSI depending on the specific model.

Can the hoses withstand extreme temperatures?

Yes, the operating temperature range is significantly wide, from -65ºC to +260ºC.

Do you offer customized assemblies?

Yes, we can fabricate custom brake and clutch hoses to your specifications, including various colors and end fitting types.
